Dual Jk Flip-Flop With Reset Integrated Circuit Chip High Speed Si-Gate Cmos Devices Pin Compatible 74hc107n

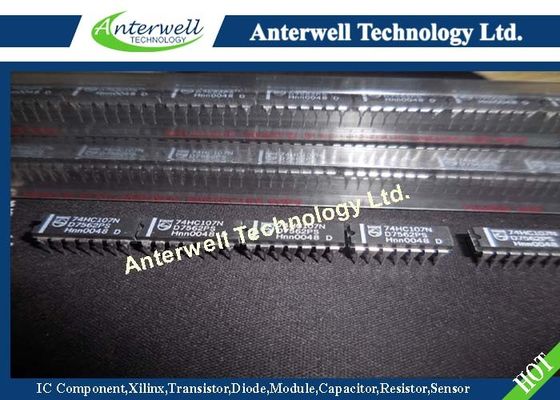

: Large Image : Dual Jk Flip-Flop With Reset Integrated Circuit Chip High Speed Si-Gate Cmos Devices Pin Compatible 74hc107n

Product Details:

Place of Origin:	Thailand
Brand Name:	PHILIPS
Certification:	Original Factory Pack
Model Number:	74HC107N

Payment & Shipping Terms:

Minimum Order Quantity:	20pcs
Price:	Negotiation
Packaging Details:	please contact me for details
Delivery Time:	1 Day
Payment Terms:	T/T, Western Union,PayPal
Supply Ability:	5200PCS

Contact Now

Detailed Product Description

Maximum Clock Frequency:	73 MHz	Input Capacitance:	3.5 PF
Power Dissipation Capacitance Per Flip-flop:	30 PF	IFSM:	100 A
TJ, Tstg:	−65 To +175 °C
High Light:	chip in electronics , integrated components

Dual Jk Flip-Flop With Reset Integrated Circuit Chip High Speed Si-Gate Cmos Devices Pin Compatible 74hc107n Dual JK flip-flop with reset; negative-edge trigger 74HC/HCT107

FEATURES

• Output capability: standard

• ICC category: flip-flops

GENERAL DESCRIPTION

The 74HC/HCT107 are high-speed Si-gate CMOS devices and are pin compatible with low power Schottky TTL (LSTTL). They are specified in compliance with JEDEC standard no. 7A. The 74HC/HCT107 are dual negative-edge triggered JK-type flip-flops featuring individual J, K, clock (nCP) and reset (nR) inputs; also complementary Q and Q outputs. The J and K inputs must be stable one set-up time prior to the HIGH-to-LOW clock transition for predictable operation. The reset (nR) is an asynchronous active LOW input. When LOW, it overrides the clock and data inputs, forcing the Q output LOW and the Q output HIGH. Schmitt-trigger action in the clock input makes the circuit highly tolerant to slower clock rise and fall times.

PIN NO.	SYMBOL	NAME AND FUNCTION
1, 8, 4, 11	1J, 2J, 1K, 2K	synchronous inputs; flip-flops 1 and 2
2, 6	1Q, 2Q	complement flip-flop outputs
3, 5	1Q, 2Q	true flip-flop outputs
7	GND	ground (0 V)
12, 9	1CP, 2CP	clock input (HIGH-to-LOW, edge-triggered)
13, 10	1R, 2R	asynchronous reset inputs (active LOW)
