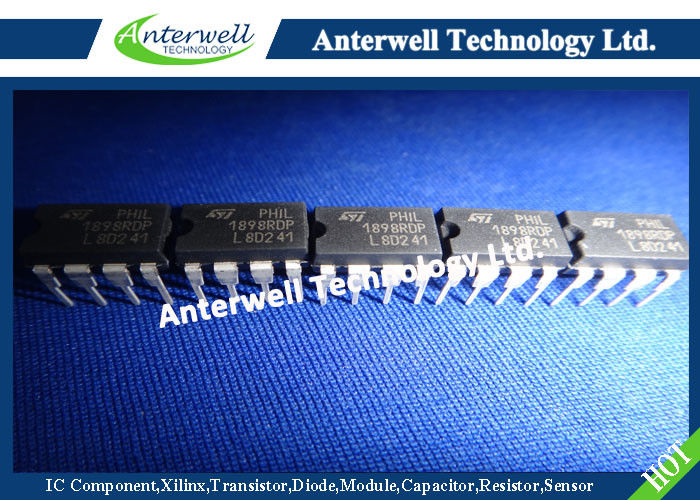

0.5a High Side Driver Integrated Circuit Chip Industrial Intelligent Power Switch Tde1898rdp

: Large Image : 0.5a High Side Driver Integrated Circuit Chip Industrial Intelligent Power Switch Tde1898rdp

Product Details:

Place of Origin:	original factory
Brand Name:	Anterwell
Certification:	new & original
Model Number:	TDE1898RDP

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Price:	Negotiate
Packaging Details:	Please contact me for details
Delivery Time:	1 day
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	3800pcs

Contact Now

Detailed Product Description

Output Current:	0.5A	Supply Voltage Range:	18V TO 35V
Energy From Inductive Load (TJ = 85°C):	200 MJ	Operating Temperature Range (Tamb):	-25 To +85 °C
Storage Temperature:	-55 To 150 °C	Supply Voltage For Valid Diagnostics:	9-35V
High Light:	chip in electronics , small scale integrated circuits

0.5A HIGH-SIDE DRIVER INDUSTRIAL INTELLIGENT POWER SWITCH

*0.5A OUTPUT CURRENT

*18V TO 35V SUPPLY VOLTAGE RANGE

*INTERNAL CURRENT LIMITING

*THERMAL SHUTDOWN

*OPEN GROUND PROTECTION

*INTERNAL NEGATIVE VOLTAGE CLAMPING TO V_S - 45V FOR FAST DEMAGNETIZATION

*DIFFERENTIAL INPUTS WITH LARGE COMMON MODE RANGE AND THRESHOLD HYSTERESIS

*UNDERVOLTAGELOCKOUTWITH HYSTERESIS

*OPEN LOAD DETECTION

*TWO DIAGNOSTIC OUTPUTS

*OUTPUT STATUS LED DRIVER

MULTIPOWER BCD TECHNOLOGY

0.5a High Side Driver Integrated Circuit Chip Industrial Intelligent Power Switch Tde1898rdp

DESCRIPTION

The TDE1897R/TDE1898R is a monolithic Intelligent Power Switch in Multipower BCD Technology, for driving inductive or resistive loads. An internal Clamping Diode enables the fast demagnetization of inductive loads.

Diagnostic for CPU feedback and extensive use of electrical protections make this device inherently indistructible and suitable for general purpose industrial applications.

BLOCK DIAGRAM

PIN CONNECTIONS (Top view)

0.5a High Side Driver Integrated Circuit Chip Industrial Intelligent Power Switch Tde1898rdp

ABSOLUTE MAXIMUM RATINGS (Minidip pin reference)

Symbol	Parameter	Value	Unit
V_S	Supply Voltage (Pins 3 - 1) (T_W < 10ms)	50	V
V_S – V_O	Supply to Output Differential Voltage. See also V_Cl 3-2 (Pins 3 - 2)	internally limited	V
V_i	Input Voltage (Pins 7/8)	-10 to VS +10	V
V_i	Differential Input Voltage (Pins 7 - 8)	43	V
I_i	Input Current (Pins 7/8)	20	mA
I_O	Output Current (Pins 2 - 1). See also ISC	internally limited	A
E_l	Energy from Inductive Load (TJ = 85°C)	200	mJ
P_tot	Power Dissipation. See also THERMAL CHARACTERISTICS.	internally limited	W
T_op	Operating Temperature Range (Tamb)	-25 to +85	°C
T_stg	Storage Temperature	-55 to 150	°C
