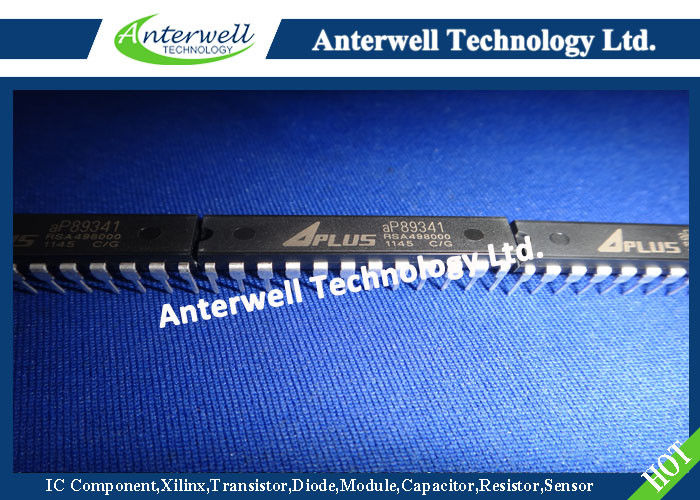

Standard CMOS Process AP89341 Integrated Circuit Chip High Performance

: Large Image : Standard CMOS Process AP89341 Integrated Circuit Chip High Performance

Product Details:

Place of Origin:	original factory
Brand Name:	Anterwell
Certification:	new & original
Model Number:	AP89341

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Price:	Negotiate
Packaging Details:	Please contact me for details
Delivery Time:	1 day
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	2500pcs

Contact Now

Detailed Product Description

Memory Size:	8M Bits	Max No. Of Voice Block:	2016
Max. No. Of Voice Group:	254	No Of Voice Table Entries:	7680
High Light:	small scale integrated circuits , integrated components

Memory Size:

8M Bits

Max No. Of Voice Block:

2016

Max. No. Of Voice Group:

254

No Of Voice Table Entries:

7680

High Light:

small scale integrated circuits

integrated components

Standard CMOS process aP89341/170/085

FEATURES

· Standard CMOS process.

· Embedded 8M/4M/2M EPROM.

· 341/170/85 sec Voice Length at 6KHz sampling and 4-bit ADPCM compression.

· Maximum 254 voice groups.

· Combination of voice blocks to extend playback duration.

· 7680 table entries are available for voice block combinations.

· User selectable PCM or ADPCM data compression

· Three triggering modes are available (controlled by M1 and M0 input pins):

- Key Trigger Mode (M1=0, M0=0) - S1 ~ S8 to trigger up to 32 voice groups; SBT to trigger up to 254 voice groups sequentially.

- CPU Parallel Trigger Mode (M1=0, M0=1) – S[8:1] services as 8-bits address to trigger up to 254 voice groups with SBT goes HIGH to strobe the address bits.

- CPU Serial Command Mode (M1=1, M0=0) – user commands are clocked serially into the chip which enable user to fully control the operation of the chip.

· Voice Group Trigger Options: Edge / Level; Hold / Un-hold; Retrigger / Non-retrigger.

· Whole Chip Options: Ramp / No-ramp; Output Options; Long / Short debounce time.

· Optional 16ms or 65us (@ 8KHz sampling rate) selectable debounce time

· RST pin set to HIGH to stop the playback at once

· Three user programmable outputs for STOP pulse, BUSY signal and flashing LED.

· Built-in oscillator to control sampling frequency with an external resistor

· 2.2V – 3.6V single power supply and < 5uA low stand-by current

· PWM Vout1 and Vout2 drive speaker directly

· D/A COUT pin drives speaker through an external BJT

· Development System support voice compilation.

DESCRIPTION

aP89341/170/085 series high performance Voice OTP is fabricated with Standard CMOS process with embedded 8M/4M/2M bits EPROM. It can store up to 341/170/85 sec voice message with 4-bit ADPCM compression at 6KHz sampling rate. 8-bit PCM is also available as user selectable option. Three trigger modes, simple Key trigger mode, Parallel CPU trigger mode and CPU serial command mode, facilitate different user interface. User selectable triggering and output signal options provide maximum flexibility to various applications. Built-in resistor controlled oscillator, 8-bit current mode D/A output and PWM direct speaker driving output minimize the number of external components. PC controlled programmer and developing software are available.

Standard CMOS Process AP89341 Integrated Circuit Chip High Performance

**PIN NAMES**
PIN (24-pin)	Playback Mode	OTP Program Mode	Description
1	S7	IO6	Trigger pin (I/O pin with internal pull-down)
2	S8	IO7	Trigger pin (I/O pin with internal pull-down)
3	VSS	VSS	Ground
4	VOUT1	--	PWM output to drive speaker directly
5	VOUT2	--	PWM output to drive speaker directly
6	VDD	VDD	Supply voltage
7	AVDD	AVDD	Analog supply voltage
8	VPP	VPP	Supply voltage for OTP programming
9	OSC	ACLK	Oscillator input
10	COUT	--	D/A current output
11	AVSS	AVSS	Analog ground
12	OUT3	--	Programmable output (I/O pin)
13	OUT2	SIO	Programmable output (I/O pin)
14	OUT1	OEB	Programmable output (I/O pin)
15	RST	DCLK	Reset pin (input pin with internal pull-down)
16	SBT	PGM	Trigger pin (I/O pin with internal pull-down)
17	M1	M1	Mode select pin 1 (input with internal pull-down)
18	M0	M0	Mode select pin 0 (input with internal pull-down)
19 ~ 24	S1~S6	IO0~IO5	Trigger input (I/O pin with internal pull-down)

VOICE SECTION COMBINATIONS

Voice files created by the PC base developing system are stored in the built-in EPROM of the aP89341/170/085 chip as a number of fixed length Voice Blocks. Voice Blocks are then selected and grouped into Voice Groups for playback. Up to 254 Voice Groups are allowed. A Voice Block Table is used to store the information of combinations of Voice Blocks and then group them together to form Voice Group.

Chip aP89341 aP89170 aP89085

Memory size 8M bits 4M bits 2M bits

Max no. of Voice Block 2016 992 480

Max. no. of Voice Group 254 254 254

No of Voice Table entries 7680 7680 7680

Voice Length (@ 6KHz 4-bit ADPCM) 341 sec 170 sec 85 sec
