Quad Picoampere Input Current Integrated Circuit Chip AD704JN Bipolar Op Amp

China Quad Picoampere Input Current Integrated Circuit Chip AD704JN Bipolar Op Amp supplier

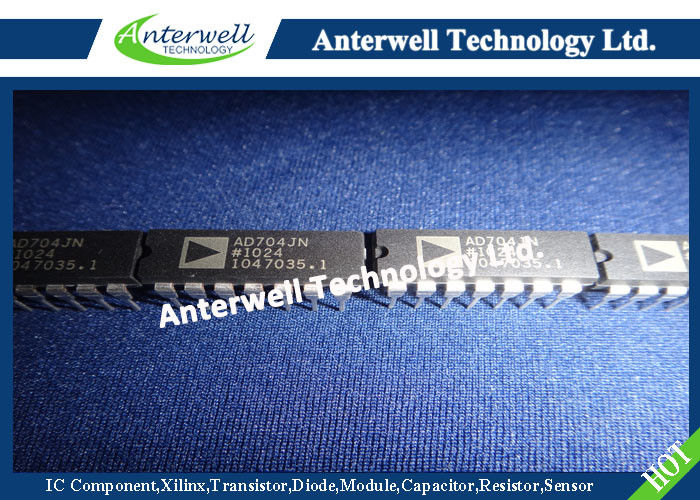

Large Image :  Quad Picoampere Input Current Integrated Circuit Chip AD704JN Bipolar Op Amp

Product Details:

Place of Origin: Original
Brand Name: AD
Certification: Original Factory Pack
Model Number: AD704JN

Payment & Shipping Terms:

Minimum Order Quantity: 20
Price: Negotiate
Packaging Details: please contact me for details
Delivery Time: 1
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 20000
Contact Now
Detailed Product Description
Supply Voltage: ±18 V Internal Power Dissipation (+25°C): See Note 2
Input Voltage: ±VS Differential Input Voltage3 .: ±0.7 V
Operating Temperature Range: 0°C To +70°C
High Light:

chip in electronics

,

integrated components



Quad Picoampere Input Current Bipolar Op Amp



Quad Picoampere Input Current Integrated Circuit Chip AD704JN Bipolar Op AmpFEATURES

High DC Precision

75 mV max Offset Voltage

1 mV/8C max Offset Voltage Drift

150 pA max Input Bias Current

0.2 pA/8C typical IB Drift

Low Noise

0.5 mV p-p typical Noise, 0.1 Hz to 10 Hz

Low Power

600 mA max Supply Current per Amplifier Chips & MIL-STD-883B Processing Available Available in Tape and Reel in Accordance with EIA-481A Standard

Single Version: AD705, Dual Version: AD706 PRIMARY APPLICATIONS

Industrial/Process Controls Weigh Scales ECG/EKG

Instrumentation Low Frequency Active Filters







PRODUCT DESCRIPTION

The AD704 is a quad, low power bipolar op amp that has the low input bias current of a BiFET amplifier but which offers a significantly lower IB drift over temperature. It utilizes Superbeta bipolar input transistors to achieve picoampere input bias current levels (similar to FET input amplifiers at room temperature), while its IB typically only increases by 5× at +125°C (unlike a BiFET amp, for which IB doubles every 10°C resulting in a 1000× increase at +125°C). Furthermore the AD704 achieves 75 µV offset voltage and low noise characteristics of a precision bipolar input op amp.



Quad Picoampere Input Current Integrated Circuit Chip AD704JN Bipolar Op AmpSince it has only 1/20 the input bias current of an AD OP07, the AD704 does not require the commonly used “balancing” resistor. Furthermore, the current noise is 1/5 that of the AD OP07 which makes the AD704 usable with much higher source impedances. At 1/6 the supply current (per amplifier) of the AD OP07, the AD704 is better suited for today’s higher density circuit boards and battery powered applications. The AD704 is an excellent choice for use in low frequency active filters in 12- and 14-bit data acquisition systems, in precision instrumentation, and as a high quality integrator. The AD704 is internally compensated for unity gain and is available in five performance grades. The AD704J and AD704K are rated over the commercial temperature range of 0°C to +70°C. The AD704A and AD704B are rated over the industrial temperature of –40°C to +85°C. The AD704T is rated                                                                                  over the military temperature range of –55°C to +125°C                                                                                and is available processed to MIL-STD-883B, Rev. C.





ABSOLUTE MAXIMUM RATINGS1

Supply Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±18 V

Internal Power Dissipation (+25°C) . . . . . . . . . . . See Note 2

Input Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±VS

Differential Input Voltage3 . . . . . . . . . . . . . . . . . . . . . . . ±0.7 V

Output Short Circuit Duration (Single Input) . . . . . Indefinite Storage Temperature Range

(Q) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . –65°C to +150°C

(N, R) . . . . . . . . . . . . . . . . . . . . . . . . . . . –65°C to +125°C

Operating Temperature Range

AD704J/K . . . . . . . . . . . . . . . . . . . . . . . . . . . 0°C to +70°C

AD704A/B . . . . . . . . . . . . . . . . . . . . . . . . . –40°C to +85°C

AD704T . . . . . . . . . . . . . . . . . . . . . . . . . . –55°C to +125°C

Lead Temperature Range (Soldering 10 seconds) . . . . +300°C
