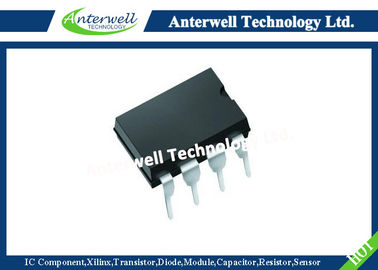

AQW212EH Electronics Componets Compact DIP8-Pin Type Of 60V To 600V Load Voltage

AQW212EH electronics componets Compact DIP8-pin type of 60V to 600V load voltage

FEATURES

1. Compact 8-pin DIP size The device comes in a compact (W) 6.4 × (L) 9.78 ×(H) 3.9 mm (W) .252×(L) .385×(H) .154 inch, 8-pin DIP size (through hole terminal type).

2. Applicable for 2 Form A use as well as two independent 1 Form A use

3. Controls low-level analog signals PhotoMOS feature extremely low closedcircuit offset voltage to enable control of low-level analog signals without distortion.

4. High sensitivity and high speed response Can control max. 0.6 A load current with 5 mA input current. Fast operation speed of typ. 0.65 ms (AQW212).

5. Low-level off state leakage current of max. 1 µA

6. Wide variation of load voltage 60V to 600V

TYPICAL APPLICATIONS

• High-speed inspection machines

• Telephones equipment

• Computer

For Dimensions. ■ For Schematic and Wiring Diagrams. ■ For Cautions for Use. ■ These products are not designed for automotive use. If you are considering to use these products for automotive applications, please contact your local Panasonic Corporation technical representative. For more information.
