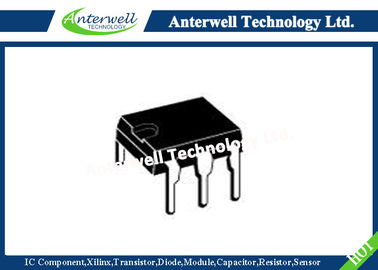

PR32MA11NTZ SMD LED Diode T(rms)≤0.15A , Non-Zero Cross type DIP 6pin SSR

PR32MA11NTZ SMD LED Diode T(rms)≤0.15A, Non-Zero Cross type DIP 6pin SSR

Description

PR22MA11NTZ Series and PR32MA11NTZ Series Solid State Relays (SSR) are an integration of an infrared emitting diode (IRED), a Phototriac Detector. These devices are ideally suited for controlling high voltage AC loads with solid state reliability while providing 5.0kV isolation (Viso(rms)) from input to output.

Features

1. Output current, IT(rms)≤0.15A

2. Non-zero crossing functionary

3. 6 pin DIP package, (SMT gullwing also available)

4. High repetitive peak off-state voltage (VDRM : 600V, PR32MA11NTZ Series) (VDRM : 400V, PR22MA11NTZ Series)

5. Superior noise immunity (dV/dt : MIN. 100V/µs)

6. Response time, ton : MAX. 100µs

7. Lead-free components are also available (see Model Line-up section in this datasheet)

8. Double transfer mold construction (Ideal for Flow Soldering)

9. High isolation voltage between input and output (Viso(rms) : 5.0kV)

 Agency approvals/Compliance

1. Package resin : UL flammability grade (94V-0)

Applications

1. Isolated interface between high voltage AC devices and lower voltage DC control circuitry.

2. Switching small capacity motors, fans, heaters, solenoids, and valves.

3. Phase or power control in applications such as lighting and temperature control equipment.

Absolute Maximum Ratings

*1 40 to 60%RH, AC for 1minute, f=60Hz *2 For 10s *3 Refer to Fig.1, Fig.2 *4 f=50Hz sine wave *5 Lead solder plating models: 260˚C

Electro-optical Characteristics

                                                                                                                                              (Ta=25˚C)
