Product Details:
Payment & Shipping Terms:
|
| VS: | –0.3...6.0V | IS: | 5mA |
|---|---|---|---|
| Tj: | 100°C | Tstg: | –25...+85°C |
| Ptot: | 50mW | Tsd: | 260°C |
| Highlight: | electronic integrated circuit,linear integrated circuits |
||

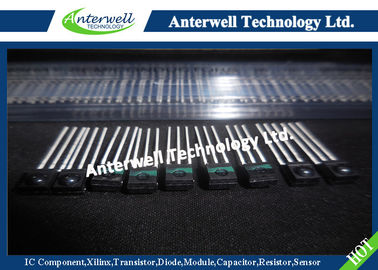

TSOP4838 IR Receiver Modules for PCM Remote Control Systems
Description
The TSOP48.. – series are miniaturized receivers for
infrared remote control systems. PIN diode and pream
-plifier are assembled on lead frame, the epoxy package
is designed as IR filter. The demodulated output signal
can directly be decoded by a microprocessor. TSOP48..
is the standard IR remote control receiver series, supp
-orting all major transmission codes.
Features
• Photo detector and preamplifier in one package
• Internal filter for PCM frequency
• Improved shielding against electrical field disturbance
•TTL and CMOS comp
• Output active low
•Low power consumption
•High immunity against ambient light
•Continuous data transmission possible (800 bit/s)
•Suitable burst length ≥10 cycles/burst
Absolute Maximum Ratings
Tamb = 25°C
| Parameter | Test Conditions | Symbol | Value | |
| Supply Voltage | (Pin 3) | VS | –0.3...6.0 | V |
| Supply Current | (Pin 3) | IS | 5 | mA |
| Output Voltage | (Pin 1) | VO | –0.3...6.0 | V |
| Output Current | (Pin 1) | IO | 5 | mA |
| Junction Temperature | Tj | 100 | °C | |
| Storage Temperature Range | Tstg | –25...+85 | °C | |
| Operating Temperature Range | Tamb | –25...+85 | °C | |
| Power Consumption | (Tamb </= 85 C) | Ptot | 50 | mW |
| Soldering Temperature | t </=10 s, 1 mm from case | Tsd | 260 | °C |
Typical Characteristics (Tamb = 25C unless otherwise specified)
