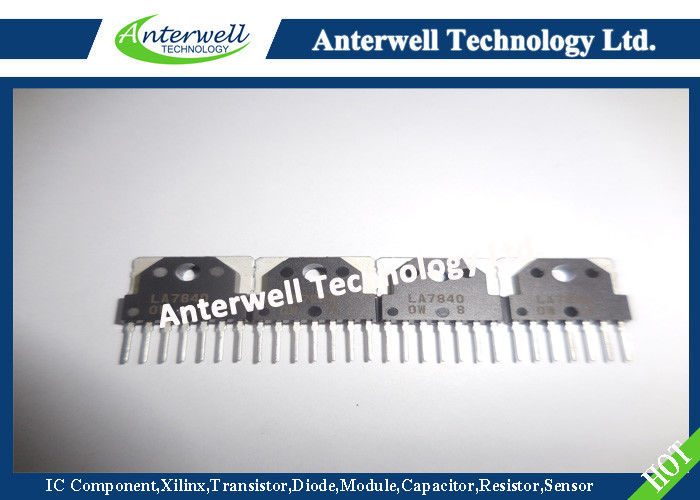

LA7840 Vertical Deflection Output Circuit Electronic IC Chips

: Large Image : LA7840 Vertical Deflection Output Circuit Electronic IC Chips

Product Details:

Place of Origin:	original factory
Brand Name:	SANYO
Certification:	new & original
Model Number:	LA7840

Payment & Shipping Terms:

Minimum Order Quantity:	20pcs
Price:	Negotiate
Packaging Details:	Please contact me for details
Delivery Time:	1 day
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	9500pcs

Contact Now

Detailed Product Description

Maximum Supply Voltage:	34V	Output Block Supply Voltage:	70V
Thermal Resistance:	4.0°C/W	Storage Temperature:	–40 To +150°C
High Light:	electronic integrated circuit , linear integrated circuits

Maximum Supply Voltage:

34V

Output Block Supply Voltage:

70V

Thermal Resistance:

4.0°C/W

Storage Temperature:

–40 To +150°C

High Light:

electronic integrated circuit

linear integrated circuits

LA7840 Vertical Deflection Output Circuit

Overview

The LA7840 is a vertical deflection output IC for TVs and CRT displays with excellent image quality that use a BUS control system signal processing IC. This IC can drive the direct (even including a DC component) deflection yoke with the sawtooth wave output from the BUS control system signal processing IC. When used in conjunction with Sanyo’s LA7615 series of BUS control system signal processing ICs for TVs, this IC can process all color television signal system functions through the BUS system. Because the maximum deflection current is 1.8 Ap-p, the LA7840 is suited for small and medium screen sets.
