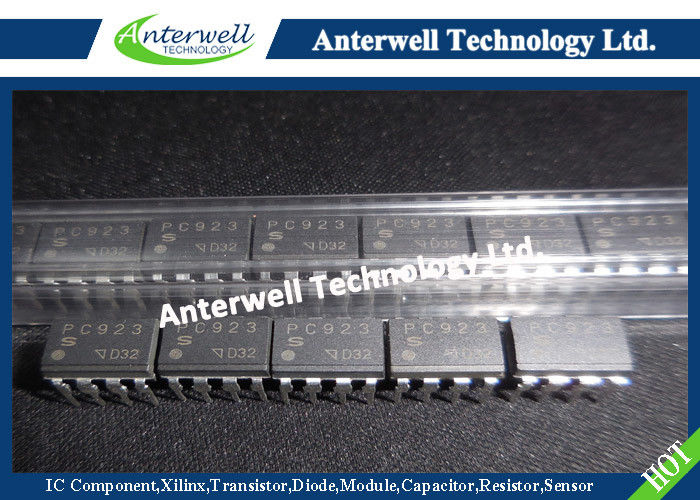

PC923L IC Chips High Speed, Gate Drive DIP 8 pin OPIC Photocoupler

: Large Image : PC923L IC Chips High Speed, Gate Drive DIP 8 pin OPIC Photocoupler

Product Details:

Place of Origin:	original factory
Brand Name:	Anterwell
Certification:	new & original
Model Number:	PC923L

Payment & Shipping Terms:

Minimum Order Quantity:	20pcs
Price:	Negotiate
Packaging Details:	Please contact me for details
Delivery Time:	1 day
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	8000pcs

Contact Now

Detailed Product Description

Forward Current:	20 MA	Reverse Voltage:	35 V
Total Power Dissipation:	550 MW	Isolation Voltage:	5.0 KV
Operating Temperature:	- 40 To +85˚C
High Light:	electronic integrated circuit , linear integrated circuits

PC923L0NSZ Series

High Speed, Gate Drive DIP 8 pin OPIC Photocoupler

■ Description

PC923L0NSZ Series contains a LED optically coupled to an OPIC chip.

It is packaged in a 8 pin DIP, available in SMT gullwing lead form option.

Input-output isolation voltage(rms) is 5.0 kV, High speed response (tPHL, tPLH : MAX. 0.5 µs).

■ Features

1. 8 pin DIP package

2. Double transfer mold package (Ideal for Flow Soldering)

3. Built-in direct drive circuit for MOSFET / IGBT drive (I_O1P, I_O2P : 0.6 A)

4. High speed response (t_PHL, t_PLH : MAX. 0.5 µs)

5. Wide operating supply voltage range (V_CC=15 to 30 V)

6. High noise immunity due to high instantaneous common mode rejection voltage (CM_H : MIN. −15kV/µs, CM_L : MIN. 15kV/µs)

7. High isolation voltage between input and output (V_iso(rms) : 5.0 kV)

■ Agency approvals/Compliance

1. Recognized by UL1577 (Double protection isolation), file No. E64380 (as model No. PC923L)

2. Approved by VDE (VDE0884) (as an option), file No. 87446 (as model No. PC923L)

3. Package resin : UL flammability grade (94V-0)

■ Applications

1. IGBT/MOSFET gate drive for inverter control

■ Absolute Maximum Ratings (Ta=25˚C)

Parameter		Symbol	Rating	Unit
Input	*1 Forward current	I_F	20	mA
Input	Reverse voltage	V_R	5	V
Output	Supply voltage	V_CC	35	V
	O₁ output current	I_O1	0.1	A
	*2 O₁ Peak output current	I_O1P	0.6	A
	O₂output current	I_O2	0.1	A
	*2 O₂ Peak output current	I_O2P	0.6	A
	O₁ output voltage	V_O1	35	V
	*3 Power dissipation	P_O	500	mW
*4 Total power dissipation		P_tot	550	mW
*5 Isolation voltage		V_{iso (rms)}	5.0	kV
Operating temperature		T_opr	−40 to +85	˚C
Storage temperature		T_stg	−55 to +125	˚C
*6 Soldering temperature		T_sol	270	˚C

*1 The derating factors of a absolute maximum ratings due to ambient temperature are shown in Fig.10

*2 Pulse width≤0.15µs, Duty ratio : 0.01

*3, 4 The derating factors of a absolute maximum ratings due to ambient temperature are shown in Fig.11

*5 AC for 1minute, 40 to 60 %RH, f=60Hz

*6 For 10s

■ Outline Dimensions (Unit : mm)
