PC900V Electronic IC Chips Digital Output Type OPIC Photocoupler

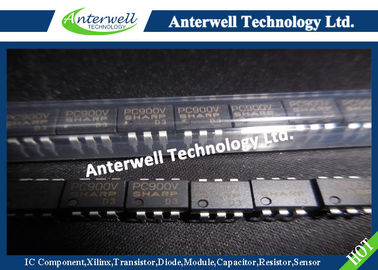

: Large Image : PC900V Electronic IC Chips Digital Output Type OPIC Photocoupler

Product Details:

Place of Origin:	original factory
Brand Name:	Anterwell
Certification:	new & original
Model Number:	PC900V

Payment & Shipping Terms:

Minimum Order Quantity:	20pcs
Price:	Negotiate
Packaging Details:	Please contact me for details
Delivery Time:	1 day
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	8000pcs

Contact Now

Detailed Product Description

Supply Voltage:	16 V	High Level Output Voltage:	16 V
Low Level Output Current:	50 MA	Total Power Dissipation:	170 MW
Operating Temperature:	- 25 To + 85˚C	Storage Temperature:	- 40 To + 125˚C
High Light:	electronic integrated circuit , linear integrated circuits

PC900V/PC900VQ

Digital Output Type OPIC Photocoupler

■ Features

1. High reliability type (PC900VQ)

2. Normal OFF operation, open collector output

3. TTL and LSTTL compatible output

4. Operating supply voltage V_CC : 3 to 15V

5. High isolation voltage between input and output (V_iso: 5 000V _rms)

6. Recognized by UL, file No. E64380

■ Applications

1. Isolation between logic circuits

2. Logic level shifters

3. Line receivers

4. Replacements for relays and pulse trans- formers

5. Noise reduction

■ Outline Dimensions ( Unit : mm)

PC900V Electronic IC Chips Digital Output Type OPIC Photocoupler

■ Absolute Maximum Ratings (Ta= 25˚C)

Parameter		Symbol	Rating	Unit
Input	Forward current	I_F	50	mA
	^*1Peak forward current	I_FM	1	A
	Reverse voltage	V_R	6	V
	Power dissipation	P	70	mW
Output	Supply voltage	V_CC	16	V
	High level output voltage	V_OH	16	V
	Low level output current	I_OL	50	mA
	Power dissipation	P_O	150	mW
Total power dissipation		Ptot	170	mW
^*2Isolation voltage		Viso	5000	V_rms
Operating temperature		Topr	- 25 to + 85	˚C
Storage temperature		Tstg	- 40 to + 125	˚C
^*3Soldering temperature		Tsol	260	˚C

*1 Pulse width<=100µs, Duty ratio : 0.001

*2 40 to 60% RH, AC for 1 minute

*3 For 10 seconds
