PC725VT IC Chips High Sensitivity, High Collector-emitter Voltage Photocoupler

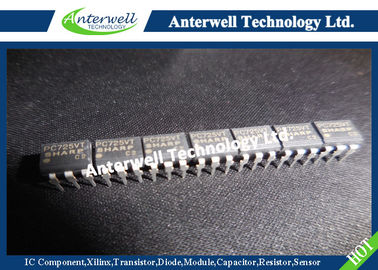

: Large Image : PC725VT IC Chips High Sensitivity, High Collector-emitter Voltage Photocoupler

Product Details:

Place of Origin:	original factory
Brand Name:	Anterwell
Certification:	new & original
Model Number:	PC725VT

Payment & Shipping Terms:

Minimum Order Quantity:	20pcs
Price:	Negotiate
Packaging Details:	Please contact me for details
Delivery Time:	1 day
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	8000pcs

Contact Now

Detailed Product Description

Forward Voltage:	50 MA	Peak Forward Voltage:	1 A
Reverse Current:	6 V	Total Power Dissipation:	350 MW
Isolation Voltage:	5000 Vrms	Operating Temperature:	- 25 To + 100 ˚C
High Light:	electronic integrated circuit , linear integrated circuits

PC725V

High Sensitivity, High Collector-emitter Voltage Type Photocoupler

■ Features

1. High collector-emitter voltage ( V_CEO : 300V)

2. High current transfer ratio (CTR : MIN. 1 000% at I_F = 1mA, V_CE = 2V)

3. High isolation voltage between input and output (V_ISO: 5 000V _rms)

4. Low collector dark current (I_CEO : MAX. 10 ^{- 6}A at V_CE = 200V)

5. Recognized by UL, file No. E64380

■ Applications

1. Telephone sets, telephone exchangers

2. Power apparatus switchboards

3. Numerical control machines

4. DC-DC SSRs, DC motor controllers

■ Outline Dimensions (Unit : mm)

PC725VT IC Chips High Sensitivity, High Collector-emitter Voltage Photocoupler

■ Absolute Maximum Ratings (Ta= 25˚C)

Parameter		Symbol	Rating	Unit
Input	Forward voltage	I_F	50	mA
	^*1Peak forward voltage	I_FM	1	A
	Reverse current	V_R	6	V
	Power dissipation	P	70	mW
Output	Collector-emitter voltage	V _CEO	300	V
	Collector-base voltage	V _CBO	300	V
	Emitter-base voltage	V _EBO	6	V
	Collector current	I_C	150	mA
	Collector current (reverse )	- I_C	10	mA
	Collector power dissipation	P_C	300	mW
Total power dissipation		P tot	350	mW
^*2Isolation voltage		V iso	5000	V rms
Operating temperature		T opr	- 25 to + 100	˚C
Storage temperature		T stg	- 40 to + 125	˚C
^*3Soldering temperature		T sol	260	˚C

*1 Pulse width<=100µs, Duty ratio : 0.001

*2 40 to 60% RH, AC for 1 minute

*3 For 10 seconds
