Total Supply Voltage: | 7 V | Input Voltage: | (V+ + 0.3V) To (V– – 0.3V) |
---|---|---|---|
Input Current: | ±10mA | Operating Temperature: | –40°C To 85°C |
Specifi Ed Temperature: | 0°C To 70°C | Lead Temperature (Soldering, 10 Sec): | 300°C |
High Light: | electronic integrated circuit,linear integrated circuits |

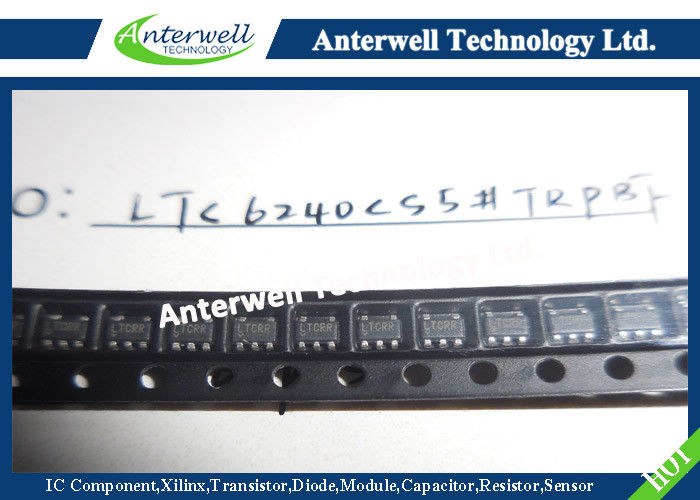

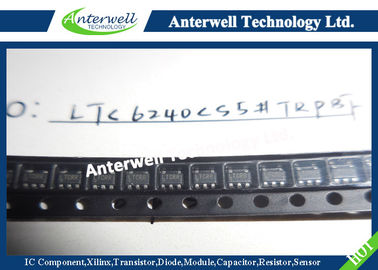

LTC6240/LTC6241/LTC6242
Single/Dual/Quad 18MHz, Low Noise, Rail-to-Rail Output, CMOS Op Amps
FEATURES
■ 0.1Hz to 10Hz Noise: 550nVP-P
■ Input Bias Current:
0.2pA (Typ at 25°C)
1pA Max (LT6240)
■ Low Offset Voltage: 125µV Max
■ Low Offset Drift: 2.5µV/°C Max
■ Gain Bandwidth Product: 18MHz
■ Output Swings Rail-to-Rail
■ Supply Operation:
2.8V to 6V LTC6240/LTC6241/LTC6242
2.8V to ±5.5V LTC6240HV/LTC6241HV/LTC6242HV
■ Low Input Capacitance
■ H Grade Temperature Range: –40°C to 125°C
■ Single LTC6240 in 5-Pin SOT-23 Package and 8-Pin SO for PCB Guard Ring
■ Dual LTC6241 in 8-Pin SO and Tiny DFN Packages
■ Quad LTC6242 in 16-Pin SSOP and 5mm × 3mm DFN Packages
APPLICATIONS
■ Photo Diode Amplifiers
■ Charge Coupled Amplifiers
■ Low Noise Signal Processing
■ Medical Instrumentation
■ High Impedance Transducer Amplifier
DESCRIPTION
The LTC®6240/6241/LTC6242 are single, dual and quad low noise, low offset, rail-to-rail output, unity gain stable CMOS op amps that feature 1pA of input bias current. Input bias current is guaranteed to be 1pA max on the single LTC6240. The 0.1Hz to 10Hz noise of only 550nVP-P, along with an offset of just 125µV are significant improvements over traditional CMOS op amps. Additionally, noise is guaranteed to be less than 10nV/√Hz at 1kHz. An 18MHz gain bandwidth, and 10V/µs slew rate, along with the wide supply range and low input capacitance, make them perfect for use as fast signal processing amplifiers.
These op amps have an output stage that swings within 30mV of either supply rail to maximize the signal dynamic range in low supply applications. The input common mode range extends to the negative supply. They are fully specified on 3V and 5V, and an HV version guarantees operation on supplies up to ±5V
The LTC6240 is available in the 8-pin SO and the 5-pin SOT-23 packages. The LTC6241 is available in the 8-pin SO, and for compact designs it is packaged in a tiny dual fine pitch leadless (DFN) package. The LTC6242 is available in the 16-Pin SSOP as well as the 5mm × 3mm DFN package.
TYPICAL APPLICATION
ABSOLUTE MAXIMUM RATINGS (Note 1)
Total Supply Voltage (V+ to V–)
LTC6240/LTC6241/LTC6242 ...................................7V
LTC6240HV/LTC6241HV/LTC6242HV ...................12V
Input Voltage .......................... (V+ + 0.3V) to (V– – 0.3V)
Input Current ........................................................±10mA
Output Short Circuit Duration (Note 2) ............ Indefinite
Operating Temperature Range
LTC6240C/LTC6241C/LTC6242C .......... –40°C to 85°C
LTC6240I/LTC6241I/LTC6242I ............. –40°C to 85°C
LTC6240H/LTC6241H/LTC6242H ....... –40°C to 125°C
Specified Temperature Range (Note 3)
LTC6240C/LTC6241C/LTC6242C .............. 0°C to 70°C
LTC6240I/LTC6241I/LTC6242I ............. –40°C to 85°C
LTC6240H/LTC6241H/LTC6242H ....... –40°C to 125°C
Junction Temperature ........................................... 150°C
DHC, DD Package ............................................. 125°C
Storage Temperature Range ....................–65ºC to 150°C
DHC, DD Package ...............................–65ºC to 125°C
Lead Temperature (Soldering, 10 sec) .................. 300°C
