LTC2451CTS8#TRPBF IC Chips Ultra-Tiny, 16-Bit DS ADC with I2C Interface

China LTC2451CTS8#TRPBF IC Chips Ultra-Tiny, 16-Bit DS ADC with I2C Interface supplier

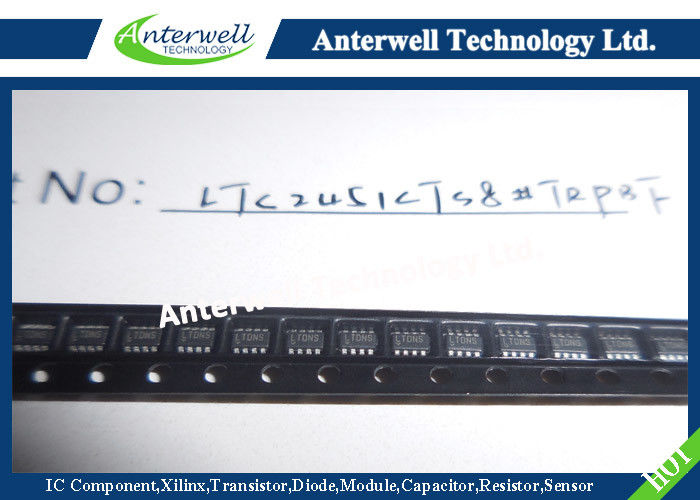

Large Image :  LTC2451CTS8#TRPBF IC Chips Ultra-Tiny, 16-Bit DS ADC with I2C Interface

Product Details:

Place of Origin: original factory
Brand Name: Anterwell
Certification: new & original
Model Number: LTC2451CTS8#TRPBF

Payment & Shipping Terms:

Minimum Order Quantity: 20pcs
Price: Negotiate
Packaging Details: Please contact me for details
Delivery Time: 1 day
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 9000pcs
Contact Now
Detailed Product Description
Supply Voltage: - 0.3V To 6V Analog Input Voltage: - 0.3V To (VCC + 0.3V)
Reference Voltage: - 0.3V To (VCC + 0.3V) Digital Voltage: - 0.3V To (VCC + 0.3V)
Storage Temperature: - 65°C To 150°C Operating Temperature: 0°C To 70°C



LTC2451

Ultra-Tiny, 16-Bit DS ADC with I2C Interface



FEATURES

• GND to VCC Single-Ended Input Range

• 0.02LSB RMS Noise

• 2LSB INL, No Missing Codes

• 1LSB Offset Error

• 4LSB Full-Scale Error

• Programmable 30/60 Conversions per Second

• Single Conversion Settling Time for Multiplexed Applications

• Single-Cycle Operation with Auto Shutdown

• 400μA Supply Current

• 0.2μA Sleep Current

• Internal Oscillator—No External Components Required

• Single Supply, 2.7V to 5.5V Operation

• 2-Wire I2C Interface

• Ultra-Tiny 3mm × 2mm DFN or TSOT-23 Package



APPLICATIONS

• System Monitoring

• Environmental Monitoring

• Direct Temperature Measurements

• Instrumentation

• Industrial Process Control

• Data Acquisition

• Embedded ADC Upgrades



DESCRIPTION

The LTC®2451 is an ultra-tiny, 16-bit, analog-to-digital converter. The LTC2451 uses a single 2.7V to 5.5V supply, accepts a single-ended analog input voltage and communicates through an I2C interface. The converter is available in an 8-pin, 3mm × 2mm DFN or TSOT-23 package. It includes an integrated oscillator that does not require any external components. It uses a delta-sigma modulator as a converter core and provides single-cycle settling time for multiplexed applications. The LTC2451 includes a proprietary input sampling scheme that reduces the average input sampling current several orders of magnitude lower than conventional Δ∑ converters.



The LTC2451 is capable of up to 60 conversions per second and, due to the very large oversampling ratio, has extremely relaxed antialiasing requirements. In the 30Hz mode, the LTC2451 includes continuous internal offset calibration algorithms which are transparent to the user, ensuring accur acy over time and over the operating temperature range. The converter has external REF+ and REF– pins and the input voltage can range from VREF– to VREF+. If VREF+ = VCC and VREF– = GND, the input voltage can range from GND to VCC.



Following a single conversion, the LTC2451 can automatically enter sleep mode and reduce its power to less than 0.2μA. If the user reads the ADC once per second, the LTC2451 consumes an average of less than 50μW from a 2.7V supply.



TYPICAL APPLICATION

LTC2451CTS8#TRPBF IC Chips Ultra-Tiny, 16-Bit DS ADC with I2C Interface



LTC2451CTS8#TRPBF IC Chips Ultra-Tiny, 16-Bit DS ADC with I2C Interface



ABSOLUTE MAXIMUM RATINGS (Notes 1, 2)

Supply Voltage (VCC) ................................... –0.3V to 6V

Analog Input Voltage (VIN) ............ –0.3V to (VCC + 0.3V)

Reference Voltage (VREF+, VREF–) ...–0.3V to (VCC + 0.3V)

Digital Voltage (VSDA, VSCL) .......... –0.3V to (VCC + 0.3V)

Storage Temperature Range ................... –65°C to 150°C

Operating Temperature Range

    LTC2451C ................................................ 0°C to 70°C

    LTC2451I.............................................. –40°C to 85°C
