BA6247FP Electronic IC Chip Reversible motor drivers ( for two motors series )

Good quality Programmable IC Chips for sales
Good quality Programmable IC Chips for sales
We have cooperate with Anterwell near 7 years. always very good quality good service. Original and very fast delivery. A very good partner.

—— Clemente From Brzail

I'm doing business with Anterwell from 2006, from small to big orders. Reliable!

—— Ingalill From Sweden

Sharon is a very good girl, we are very happy to cooperate with her. Competitive price and professional. Never have quality problem with them.

—— Alfredo From USA

We always buy XILINX parts from Anterwell. High quality with good price. Hope can have more business with you.

—— Mr Babak From Iran

I'm Online Chat Now

BA6247FP Electronic IC Chip Reversible motor drivers ( for two motors series )

China BA6247FP Electronic IC Chip Reversible motor drivers ( for two motors series ) supplier

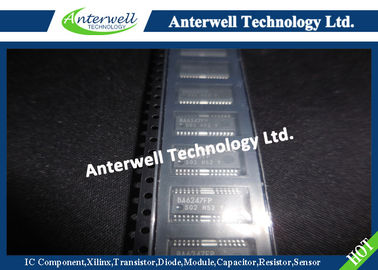

Large Image :  BA6247FP Electronic IC Chip Reversible motor drivers ( for two motors series )

Product Details:

Place of Origin: original factory
Brand Name: Anterwell
Certification: new & original
Model Number: BA6247FP

Payment & Shipping Terms:

Minimum Order Quantity: 20pcs
Price: Negotiate
Packaging Details: Please contact me for details
Delivery Time: 1 day
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 8000pcs
Contact Now
Detailed Product Description
Supply Voltage: 20 V Output Current: 1 A
Control Input Pins: -0.2 ~ 6.0 V Operating Temperature: -25 ~ 75 °C
Storage Temperature: -55 ~ 150 °C Power Dissipation: 1.45 W
High Light:

electronic integrated circuit

,

linear integrated circuits



Reversible motor drivers (for two motors series)

BA6246, BA6246N, BA6247FP-Y, BA6239A, BA6238A, BA6238AN





Overview

The reversible motor driver for output 1.0A or more for two motors drives a brush motor and incorporates one and a half circuits of reversible motor driver. In addition, since the output section can control voltage applied to motors by output high voltage setting pin, the torque at the time of driving motors can be varied.



Features

1) Built-in one and a half circuits of a reversible motor driver

2) Minimal external components

3) Output voltage can be optionally set by reference voltage setting pin

4) Built-in thermal shutdown circuit



Applications

Audio-visual equipment; PC peripherals; Car audios; Car navigation systems; OA equipments



Absolute maximum ratings (Ta=25°C, All voltages are with respect to ground)

Parameter Symbol Ratings Unit
BA6246/N BA6247FP-Y BA6239A BA6238A/AN
Supply voltage VCC1, VCC2 20 20 20 20 V
Output current IOMAX 1*1 1*1 1.2*2 1.6*1 A
Control input pins VIN -0.2 ~ 6.0 -0.2 ~ 6.0 -0.3 ~ 5.0 -0.3 ~ 5.0 V
Operating temperature TOPR -25 ~ 75 -25 ~ 75 -25 ~ 75 -25 ~ 75 °C
Storage temperature TSTG -55 ~ 150 -55 ~ 150 -55 ~ 125 -55 ~ 125 °C
Power dissipation PD 2.5*3 / 1.19*4 1.45*5 2.0*3 2.0*3 / 0.95*4 W
Junction temperature Tjmax 150 150 125 125 °C

*1 Do not, exceed Pd or ASO (Pulse at 1/50 duty: 50ms).

*2 Do not, exceed Pd or ASO (Pulse at 1/100 duty: 500µs).

*3 HSIP10 package. Derated at 20mW/°C above 25°C.

*4 SIP10 package. Derated at 9.5mW/°C above 25°C.

*5 HSOP25 package. Mounted on a 70mm x 70mm x 1.6mm FR4 glass-epoxy board with less than 3% copper foil. Derated at 11.6mW/°C above 25°C.
