AD8561ARZ-REEL Electronic IC Chip Ultrafast 7 ns Single Supply Comparator

China AD8561ARZ-REEL Electronic IC Chip Ultrafast 7 ns Single Supply Comparator supplier

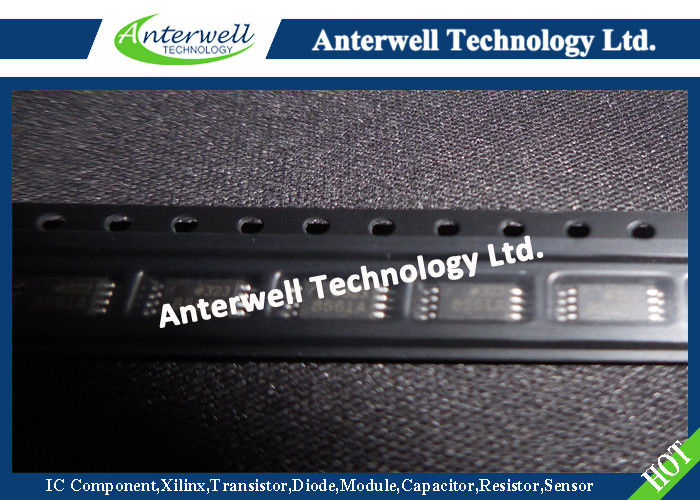

Large Image :  AD8561ARZ-REEL Electronic IC Chip Ultrafast 7 ns Single Supply Comparator

Product Details:

Place of Origin: original factory
Brand Name: Anterwell
Certification: new & original
Model Number: AD8561ARZ-REEL

Payment & Shipping Terms:

Minimum Order Quantity: 20pcs
Price: Negotiate
Packaging Details: Please contact me for details
Delivery Time: 1 day
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 9000pcs
Contact Now
Detailed Product Description
Total Analog Supply Voltage: +14 V Digital Supply Voltage: +14 V
Analog Positive Supply–Digital Positive Supply: –600 MV Input Voltage: ±7 V
Differential Input Voltage: ±8 V Operating Temperature: –40°C To +85°C



Ultrafast 7 ns Single Supply Comparator AD8561



FEATURES

7 ns Propagation Delay at 5 V

Single Supply Operation: 3 V to 10 V

Low Power

Latch Function

TSSOP Packages



APPLICATIONS

High Speed Timing

Clock Recovery and Clock Distribution

Line Receivers

Digital Communications

Phase Detectors

High Speed Sampling

Read Channel Detection

PCMCIA Cards

Upgrade for LT1016 Designs



GENERAL DESCRIPTION

The AD8561 is a single 7 ns comparator with separate input and output sections. Separate supplies enable the input stage to be operated from ±5 V dual supplies and +5 V single supplies.



Fast 7 ns propagation delay makes the AD8561 a good choice for timing circuits and line receivers. Propagation delays for rising and falling signals are closely matched and track over temperature. This matched delay makes the AD8561 a good choice for clock recovery, since the duty cycle of the output will match the duty cycle of the input.



The AD8561 has the same pinout as the LT1016, with lower supply current and a wider common-mode input range, which includes the negative supply rail.



The AD8561 is specified over the industrial (–40°C to +85°C) temperature range. The AD8561 is available in both the 8-lead plastic DIP, 8-lead TSSOP or narrow SO-8 surface mount packages.



PIN CONFIGURATIONS

AD8561ARZ-REEL Electronic IC Chip Ultrafast 7 ns Single Supply Comparator



ABSOLUTE MAXIMUM RATINGS

Total Analog Supply Voltage . . . . . . . . . . . . . . . . . . . . . +14 V

Digital Supply Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . +14 V

Analog Positive Supply–Digital Positive Supply . . . . . –600 mV

Input Voltage1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±7 V

Differential Input Voltage . . . . . . . . . . . . . . . . . . . . . . . .  ±8 V

Output Short-Circuit Duration to GND . . . . . . . . . Indefinite

Storage Temperature Range

    N, R, RU Package . . . . . . . . . . . . . . . . . . –65°C to +150°C

Operating Temperature Range . . . . . . . . . . . –40°C to +85°C

Junction Temperature Range

    N, R, RU Package . . . . . . . . . . . . . . . . . . –65°C to +150°C

Lead Temperature Range (Soldering, 10 sec) . . . . . . .+350°C


NOTES 1 The analog input voltage is equal to ±7 V or the analog supply voltage, whichever is less.









Stock Offer (Hot Sell)

Part no. Quantity Brand D/C Package
AF4502C 780 ANACHIP 14+ SOP-8
ACS712ELCTR-20A 782 ALLEGRO 14+ SOP
IRF520 782 IR 14+ TO-220
IRFB4710 782 IR 16+ TO-220
CD4099BE 785 TI 16+ DIP
ENC28J60-I/SO 785 MICROCHIP 13+ SOP
BTA41-800B 795 ST 15+ TO-3P
PIC16F883-I/SO 799 MICROCHIP 16+ SOP
2SD1406-Y 800 TOS 16+ TO-3P
TOP414GN 800 POWER 14+ SOP-8
TDA7253 802 ST 14+ ZIP
L4960 822 ST 14+ ZIP
STPS1045D 822 ST 16+ TO-220
AP919 881 VALENCE 16+ TQFP
ADC0804 887 NS 13+ SOP
AM26LV31CDR 888 TI 15+ SOP-16
EPM2210F324I5N 888 ALTERA 16+ BGA
LTC1628IG 888 LINEAR 16+ SSOP
CD4012BE 899 TI 14+ DIP
G4PC30UD 900 IR 14+ TO-3P
PT2272-M6 900 PTC 14+ DIP
RHRP30120 900 FAIRCHILD 16+ TO-220
MP4211 910 TOSHIBA 16+ NA
AD7740YRMZ 911 AD 13+ MSOP-8
FOD260L 922 FSC 15+ DIP-8
PIC16F916-I/SP 922 MICROCHIP 16+ DIP
74VHC4040MX 971 FSC 16+ SOP
LM22676MRX-ADJ 972 NS 14+ SOP-8
AX3113SA 977 AXELITE 14+ SOP8
CS8416-CZZ 980 CIRRUS 14+ TSSOP
