SP485ES Electronic IC Chips Low Power Half-Duplex RS-485 Transceivers

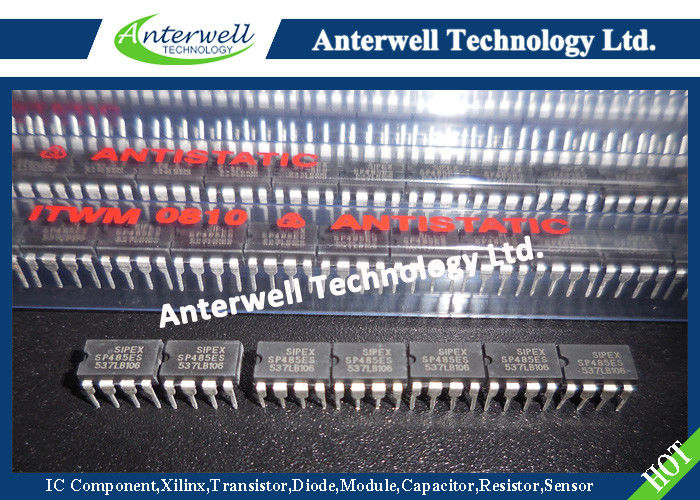

: Large Image : SP485ES Electronic IC Chips Low Power Half-Duplex RS-485 Transceivers

Product Details:

Place of Origin:	original factory
Brand Name:	Anterwell
Certification:	new & original
Model Number:	SP485ES

Payment & Shipping Terms:

Minimum Order Quantity:	20 pcs
Price:	Negotiate
Packaging Details:	Please contact me for details
Delivery Time:	1 day
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	10000 pcs

Contact Now

Detailed Product Description

VCC:	±12 V	Storage Temperature:	-65˚C To +150˚C
Power Dissipation:	500 MW	Output Voltage:	3 V
Input High Voltage:	2.0 V	Input Low Voltage:	0.8 V
Input Current:	±10 µA	Driver Short-Circuit Current:	35 To 250 MA
High Light:	electronic integrated circuit , linear integrated circuits

SP481/SP483/SP485

Low Power Half-Duplex RS-485 Transceivers

■ +5V Only SP485ES Electronic IC Chips Low Power Half-Duplex RS-485 Transceivers

■ Low Power BiCMOS

■ Driver/Receiver Enable

■ Slew Rate Limited Driver for Low EMI (SP483)

■ Low Power Shutdown Mode (SP481 and SP483)

■ RS-485 and RS-422 Drivers/Receivers

DESCRIPTION

The SP481, SP483, and the SP485 are a family of half-duplex transceivers that meet the requirements of RS-485 and RS-422. Their BiCMOS design allows low power operation without sacrificing performance. The SP481 and SP485 meet the requirements of RS-485 and RS-422 up to 5Mbps. Additionally, the SP481 is equipped with a low power Shutdown mode. The SP483 is internally slew rate limited to reduce EMI and can meet the requirements of RS-485 and RS-422 up to 250kbps. The SP483 is also equipped with a low power Shutdown mode.

SP485ES Electronic IC Chips Low Power Half-Duplex RS-485 Transceivers

ABSOLUTE MAXIMUM RATINGS

These are stress ratings only and functional operation of the device at these ratings or any other above those indicated in the operation sections of the specifications below is not implied. Exposure to absolute maximum rating conditions for extended periods of time may affect reliability.

V_CC............................................................................................................±12V

Input Voltages

Logic........................................................-0.3V to (V_CC+0.5V)

Drivers..................................................-0.3V to (V_CC+0.5V)

Receivers................................................................. ±15V

Output Voltages

Logic........................................................-0.3V to (V_CC+0.5V)

Drivers...................................................................... ±15V

Receivers............................................-0.3V to (V_CC+0.5V)

Storage Temperature.......................................................-65˚C to +150˚C

Power Dissipation...........................................................................500mW
