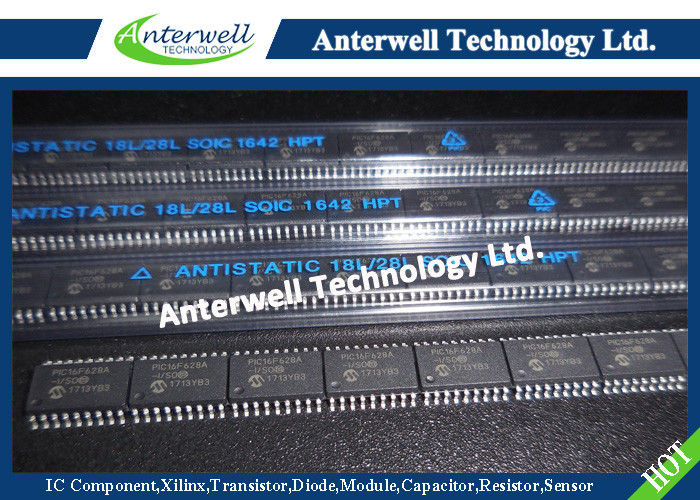

PIC16F628A-I/SO Electronic IC Chips FLASH-Based 8-Bit CMOS Microcontrollers



PIC16F627A/628A/648A

FLASH-Based 8-Bit CMOS Microcontrollers



18-pin FLASH-Based 8-Bit CMOS Microcontrollers



High Performance RISC CPU:

• Operating speeds from DC - 20 MHz

• Interrupt capability

• 8-level deep hardware stack

• Direct, Indirect and Relative Addressing modes

• 35 single word instructions

  - All instructions single cycle except branches



Special Microcontroller Features:

• Internal and external oscillator options

  - Precision Internal 4 MHz oscillator factory calibrated to ±1%

  - Low Power Internal 37 kHz oscillator

  - External Oscillator support for crystals and resonators.

• Power saving SLEEP mode

• Programmable weak pull-ups on PORTB

• Multiplexed Master Clear/Input-pin

• Watchdog Timer with independent oscillator for reliable operation

• Low voltage programming



• In-Circuit Serial Programming™ (via two pins)

• Programmable code protection

• Brown-out Reset

• Power-on Reset

• Power-up Timer and Oscillator Start-up Timer

• Wide operating voltage range. (2.0 - 5.5V)

• Industrial and extended temperature range

• High Endurance FLASH/EEPROM Cell

  - 100,000 write FLASH endurance

  - 1,000,000 write EEPROM endurance

  - 100 year data retention



Low Power Features:

• Standby Current:

  - 100 nA @ 2.0V, typical

• Operating Current:

  - 12 µA @ 32 kHz, 2.0V, typical

  - 120 µA @ 1 MHz, 2.0V, typical

• Watchdog Timer Current

  - 1 µA @ 2.0V, typical

• Timer1 oscillator current:

  - 1.2 µA @ 32 kHz, 2.0V, typical

• Dual Speed Internal Oscillator:

  - Run-time selectable between 4 MHz and 37 kHz

  - 4 µs wake-up from SLEEP, 3.0V, typical



Peripheral Features:

• 16 I/O pins with individual direction control

• High current sink/source for direct LED drive

• Analog comparator module with:

  - Two analog comparators

  - Programmable on-chip voltage reference (VREF) module

  - Selectable internal or external reference

  - Comparator outputs are externally accessible



• Timer0: 8-bit timer/counter with 8-bit programmable prescaler

• Timer1: 16-bit timer/counter with external crystal/ clock capability

• Timer2: 8-bit timer/counter with 8-bit period register, prescaler and postscaler

• Capture, Compare, PWM module

  - 16-bit Capture/Compare

  - 10-bit PWM

• Addressable Universal Synchronous/Asynchronous Receiver/Transmitter USART/SCI



Absolute Maximum Ratings†

Ambient temperature under bias.............................................................................-40 to +125°C

Storage temperature ......................................................................................... -65°C to +150°C

Voltage on V_DD with respect to V_SS ........................................................................ -0.3 to +6.5V

Voltage on MCLR and RA4 with respect to V_SS ........................................................-0.3 to +14V

Voltage on all other pins with respect to V_SS ................................................-0.3V to V_DD + 0.3V

Total power dissipation⁽¹⁾ ................................................................................................800 mW

Maximum current out of V_SS pin .......................................................................................300 mA

Maximum current into V_DD pin ..........................................................................................250 mA

Input clamp current, I_IK (V_I < 0 or V_I > V_DD)...................................................................... ± 20 mA

Output clamp current, I_OK (Vo < 0 or Vo >V_DD)................................................................. ± 20 mA

Maximum output current sunk by any I/O pin..........................................................................25 mA

Maximum output current sourced by any I/O pin ....................................................................25 mA

Maximum current sunk by PORTA and PORTB (Combined)..................................................200 mA

Maximum current sourced by PORTA and PORTB (Combined).............................................200 mA

---

Note 1: Power dissipation is calculated as follows: PDIS = VDD x {IDD - ∑ IOH} + ∑ {(VDD-VOH) x IOH} + ∑(VOl x IOL)



† NOTICE: Stresses above those listed under “Absolute Maximum Ratings” may cause permanent damage to the device. This is a stress rating only and functional operation of the device at those or any other conditions above those indicated in the operation listings of this specification is not implied. Exposure to maximum rating conditions for extended periods may affect device reliability.



Note: Voltage spikes below VSS at the MCLR pin, inducing currents greater than 80 mA, may cause latchup. Thus, a series resistor of 50-100 Ω should be used when applying a “low” level to the MCLR pin rather than pulling this pin directly to VSS.
