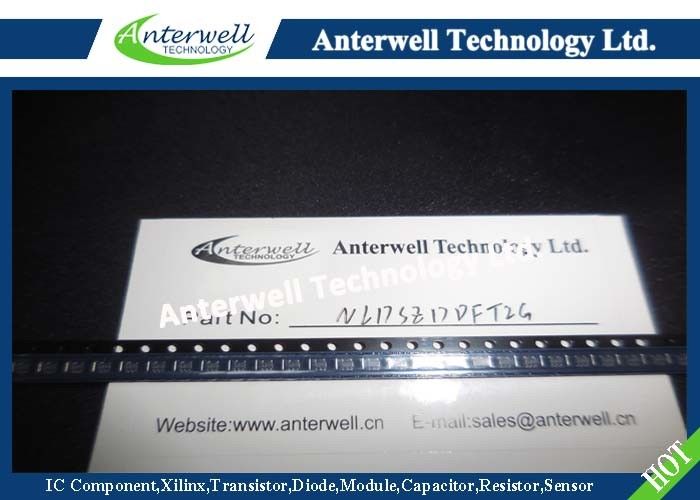

NL17SZ17DFT2G IC Chips Single Non-Inverting Buffer with Schmitt Trigger

: Large Image : NL17SZ17DFT2G IC Chips Single Non-Inverting Buffer with Schmitt Trigger

Product Details:

Place of Origin:	original factory
Brand Name:	Anterwell
Certification:	new & original
Model Number:	NL17SZ17DFT2G

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Price:	Negotiate
Packaging Details:	Please contact me for details
Delivery Time:	1 day
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	9300pcs

Contact Now

Detailed Product Description

DC Supply Voltage:	-0.5 To 7.0 V	DC Input Voltage:	-0.5 ≤ VI ≤ 7.0 V
DC Output Voltage:	-0.5 ≤ VO ≤ 7.0 V	DC Input Diode Current:	-50 MA
DC Output Diode Current:	-50 MA	Storage Temperature:	-65 To 150 °C
High Light:	electronic integrated circuit , linear integrated circuits

NL17SZ17

Single Non−Inverting Buffer with Schmitt Trigger

The NL17SZ17 is a single Non−inverting Schmitt Trigger Buffer in two tiny footprint packages. The device performs much as LCX multi−gate products in speed and drive.

Features

• Tiny SOT−353 and SOT−553 Packages

• Source/Sink 24 mA at 3.0 Volts

• Overvoltage Tolerant Inputs and Outputs

• Chip Complexity: FETs = 20

• Designed for 1.65 V to 5.5 V VCC Operation

• Pb−Free Packages are Available

NL17SZ17DFT2G IC Chips Single Non-Inverting Buffer with Schmitt Trigger

MAXIMUM RATINGS

Symbol	Parameter	Value	Unit
V_CC	DC Supply Voltage	-0.5 to 7.0 V	V
V_I	DC Input Voltage	-0.5 ≤ V_I ≤ 7.0 V	V
V_O	DC Output Voltage Output in High or LOW State (Note 1)	-0.5 ≤ V_O ≤ 7.0	V
I_IK	DC Input Diode Current V_I < GND	-50	mA
I_OK	DC Output Diode Current V_O < GND	-50	mA
I_O	DC Output Sink Current	±50	mA
I_CC	DC Supply Current per Supply Pin	±100	mA
I_GND	DC Ground Current per Ground Pin	±100	mA
T_STG	Storage Temperature Range	-65 to 150	°C
T_L	Lead Temperature, 1 mm from Case for 10 Seconds	260	°C
T_J	Junction Temperature under Bias	+150	°C
θ_JA	Thermal Resistance SOT−353 (Note 2) SOT−553	350 496	°C/W
P_D	Power Dissipation in Still Air at 85°C SOT−353 SOT−553	186 135	mW
MSL	Moisture Sensitivity	Level 1
F_R	Flammability Rating Oxygen Index: 28 to 34	UL 94 V−0 @ 0.125 in
I_Latchup	Latchup Performance Above V_CC and Below GND at 85°C (Note 6)	±500	mA
ESD	ESD Classification Human Body Model (Note 3) Machine Model (Note 4) Charged Device Model	Class IC Class A N/A

Maximum ratings are those values beyond which device damage can occur. Maximum ratings applied to the device are individual stress limit values (not normal operating conditions) and are not valid simultaneously. If these limits are exceeded, device functional operation is not implied, damage may occur and reliability may be affected.

1. I_O absolute maximum rating must be observed.

2. Measured with minimum pad spacing on an FR4 board, using 10 mm−by−1 inch, 2−ounce copper trace with no air flow.

3. Tested to EIA/JESD22−A114−A, rated to EIA/JESD22−A114−B.

4. Tested to EIA/JESD22−A115−A, rated to EIA/JESD22−A115−A.

5. Tested to JESD22−C101−A.

6. Tested to EIA/JESD78.
