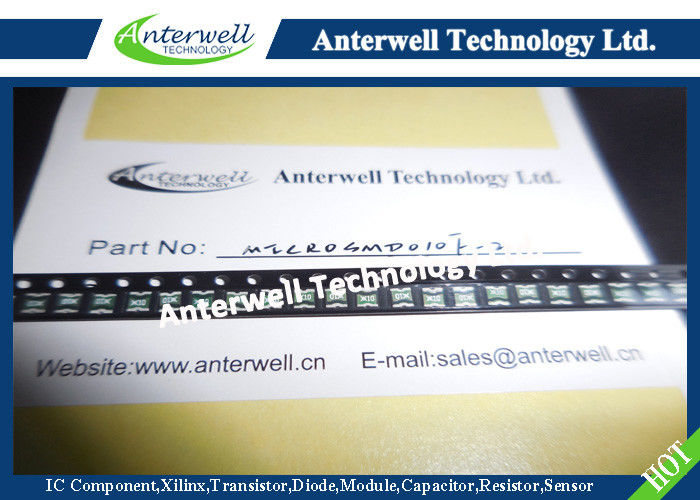

MICROSMD010F-2 Electronic IC Chips PolySwitch Resettable Devices

PolySwitch Resettable Devices

Surface-mount Devices

PolySwitch surface-mount devices are the preferred circuit protection method for computer, consumer, multimedia, portable, and automotive electronics applications.

In an affort to reduce the size and cost of surface-mount devices, we introduced the miniSMD product series in 1995. Subsequently, we developed the microSMD, nanoSMD, picoSMD and femtoSMD family of products. The femtoSMD series reduced the device size to a 1608mm (0603 mils) footprint, one twelfth the size of the popular miniSMD series.

Recent additions to the PolySwitch surface-mount series include 3.0A miniSMD 4532mm (1812 mils), 2.0A nanoSMD 3216mm (1206 mils) and 0.16A femtoSMD 1608mm (0603 mils) devices.

Benefits

• Smaller size saves board space and cost

• Many product choices give engineers more design flexibility

• Compatible with high-volume electronics assembly

• Assists in meeting regulatory requirements

• Higher voltage ratings allow use in new applications

Features

• RoHS compliant

• Halogen free (refers to: Br900ppm, Cl900ppm, Br+Cl1500ppm)

• Broadest range of resettable devices available in the industry

• Current ratings from 0.05 to 3A

• Voltage ratings from 6V computer and electronic applications to 60V telecom applications

• Agency recognition: UL, CSA, TÜV

• Small footprint

• Fast time-to-trip

• Low resistance

Applications

• Computer

• Portable electronics

• Multimedia

• Game machines

• Telephony and broadband

• Mobile phones

• Automotive

• Industrial controls

• Battery
