Product Details:
Payment & Shipping Terms:
|
Operating Voltage: | 1.0 To 5.5 V | Supply Current: | 25 µA |
---|---|---|---|
Reset Threshold Hysteresis: | 20 MV | Reset Pulse Width: | 200 Ms |
Watchdog Timeout Period: | 1.60 S | WDI Input Current: | 0.02 µA |
High Light: | electronic integrated circuit,linear integrated circuits |

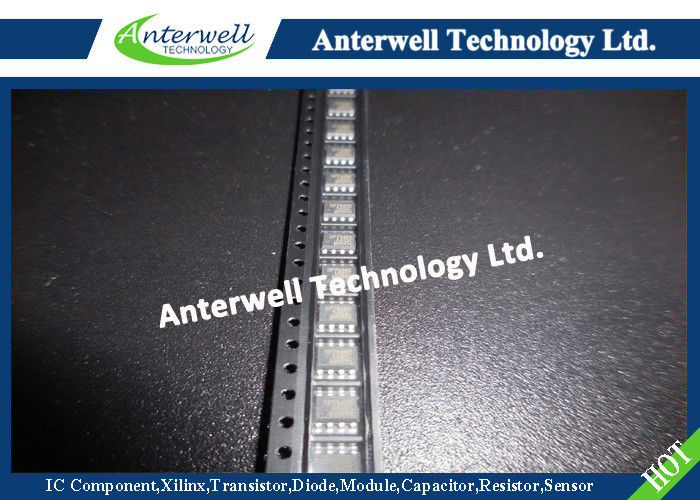

SP706P/R/S/T, SP708R/S/T
+3.0V/+3.3V Low Power Microprocessor Supervisory Circuits
■ Precision Low Voltage Monitor:
SP706P/R and SP708R at +2.63V
SP706S and SP708S at +2.93V
SP706T and SP708T at +3.08V
■ RESET Pulse Width - 200ms
■ Independent Watchdog Timer - 1.6 sec Timeout (SP706P/S/R/T)
■ 40µA Maximum Supply Current
■ Debounced TTL/CMOS Manual-Reset Input
■ RESET Asserted Down to VCC = 1V
■ RESET Output:
SP706P Active-High
SP706R/S/T Active-Low
SP708R/S/T Both Active High + Active Low
■ WDI Can Be Left Floating, Disabling the Watchdog Function
■ Built-In Vcc Glitch Immunity
■ Available in 8-pin PDIP, NSOIC, and µSOIC packages
■ Voltage Monitor for Power Failure or Low Battery Warning
■ Pin Compatible Enhancement to Industry Standards 706P/R/S/T and 708R/S/T
Now Available in Lead Free Packaging
The SP706P/S/R/T, SP708R/S/T series is a family of microprocessor (µP) supervisory circuits that integrate myriad components involved in discrete solutions which monitor power-supply and battery, in µP, and digital systems. The SP706P/S/R/T, SP708R/S/T series will significantly improve system reliability and operational efficiency when compared to results obtained with discrete components. The features of the SP706P/S/R/T, SP708R/S/T series include a watchdog timer, a µP reset, a Power Fail Comparator, and a manual-reset input. The SP706P/ S/R/T, SP708R/S/T series is ideal for +3.0V or +3.3V applications in automotive systems, computers, controllers, and intelligent instruments. The SP706P/S/R/T, SP708R/S/T series is an ideal solution for systems in which critical monitoring of the power supply to the µP and related digital components is demanded.
ABSOLUTE MAXIMUM RATINGS
These are stress ratings only and functional operation of the device at these ratings or any other above those indicated in the operation sections of the specifications below is not implied. Exposure to absolute maximum rating conditions for extended periods of time may affect reliability.
Terminal Voltage (with respect to GND):
VCC........................................................-0.3V to +6.0V
All Other Inputs ...........................-0.3V to (VCC +3.0V)
Input Current:
VCC.....................................................................20mA
GND...................................................................20mA
Output Current (all outputs)...............................20mA
ESD Rating...........................................................2kV
Continuous Power Dissipation
Plastic DIP (derate 9.09mW/℃ above +70℃)..................727mW
SO (derate 5.88mW/℃ above +70℃).............................471mW
Mini SO (derate 4.10mW/℃ above +70℃)......................330mW
Storage Temperature Range...............................-65˚C to +160˚C
Lead Temperature (solding 10 sec)..................................+300˚C
