IRL3713PBF Power Mosfet Transistor electrical ic HEXFET Power MOSFET

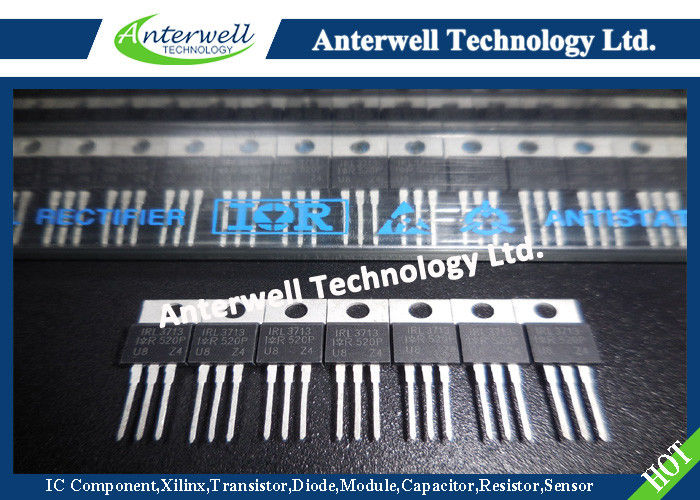

: Large Image : IRL3713PBF Power Mosfet Transistor electrical ic HEXFET Power MOSFET

Product Details:

Place of Origin:	original factory
Brand Name:	Anterwell
Certification:	new & original
Model Number:	IRL3713PBF

Payment & Shipping Terms:

Minimum Order Quantity:	20pcs
Price:	Negotiate
Packaging Details:	Please contact me for details
Delivery Time:	1 day
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	8300pcs

Contact Now

Detailed Product Description

Drain-Source Voltage:	30 V	Gate-to-Source Voltage:	± 20 V
Pulsed Drain Current:	1040 A	Linear Derating Factor:	2.2 W/°C
Junction Temperature:	-55 To +175°C	Storage Temperature:	-55 To +175°C
High Light:	power mosfet ic , multi emitter transistor

IRL3713PbF IRL3713SPbF IRL3713LPbF

HEXFET Power MOSFET

SMPS MOSFET

Applications

High Frequency Isolated DC-DC Converters with Synchronous Rectification for Telecom and Industrial Use
High Frequency Buck Converters for Computer Processor Power
100% RG Tested
Lead-Free

Benefits

Ultra-Low Gate Impedance
Very Low R_DS(on) at 4.5V V_GS
Fully Characterized Avalanche Voltage and Current

Absolute Maximum Ratings

Symbol	Parameter	Max	Units
V_DS	Drain-Source Voltage	30	V
V_GS	Gate-to-Source Voltage	± 20	V
I_D @ T_C = 25°C	Continuous Drain Current, V_GS @ 10V	260	A
I_D @ T_C = 100°C	Continuous Drain Current, V_GS @ 10V	180	A
I_DM	Pulsed Drain Current	1040	A
P_D @T_C = 25°C	Maximum Power Dissipation	330	W
P_D @T_C = 100°C	Maximum Power Dissipation	170	W
	Linear Derating Factor	2.2	W/°C
T_J, T_STG	Junction and Storage Temperature Range	-55 to +175	°C

IRL3713PBF Power Mosfet Transistor electrical ic HEXFET Power MOSFET
