Anterwell Technology Ltd.

          Anterwell Technology Ltd.



Large Original stock of IC Electronics Components, Transistors, Diodes etc.

High Quality, Reasonable Price, Fast Delivery.

Home
Products
About Us
Factory Tour
Quality Control
Contact Us
Request A Quote
Home ProductsMosfet Power Module

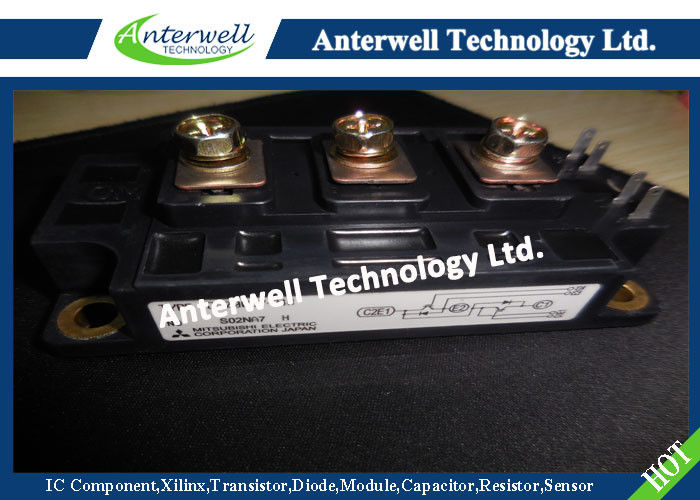

CM200DY-24H Mosfet Power Module thyristor switching Lgbt Power Module

Good quality Programmable IC Chips for sales
Good quality Programmable IC Chips for sales
We have cooperate with Anterwell near 7 years. always very good quality good service. Original and very fast delivery. A very good partner.

—— Clemente From Brzail

I'm doing business with Anterwell from 2006, from small to big orders. Reliable!

—— Ingalill From Sweden

Sharon is a very good girl, we are very happy to cooperate with her. Competitive price and professional. Never have quality problem with them.

—— Alfredo From USA

We always buy XILINX parts from Anterwell. High quality with good price. Hope can have more business with you.

—— Mr Babak From Iran

I'm Online Chat Now

CM200DY-24H Mosfet Power Module thyristor switching Lgbt Power Module

China CM200DY-24H Mosfet Power Module thyristor switching Lgbt Power Module supplier

Large Image :  CM200DY-24H Mosfet Power Module thyristor switching Lgbt Power Module

Product Details:

Place of Origin: original factory
Brand Name: Anterwell
Certification: new & original
Model Number: CM200DY-24H

Payment & Shipping Terms:

Minimum Order Quantity: 5pcs
Price: Negotiate
Packaging Details: Please contact me for details
Delivery Time: 1 day
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 2300pcs
Contact Now
Detailed Product Description
Junction Temperature: –40 To 150 °C Storage Temperature: –40 To 125 °C
Collector-Emitter Voltage (G-E SHORT): 1200 Volts Gate-Emitter Voltage (C-E SHORT): ±20 Volts
Peak Emitter Current: 400 A Maximum Collector Dissipation: 1500 W



Stock Offer (Hot Sell)

Part no. Quantity Brand D/C Package
BZX84-C16 3582 NXP 14+ SOT-23
IRF7492TRPBF 3600 IR 14+ SOP-8
SGW25N120 3600 14+ TO-3P
FDS8958B 3700 FAIRCHILD 16+ SOP-8
L7809 3700 ST 16+ TO-220
SP202ECT 3700 SIPEX 13+ SOP-16
ZTX614 3700 ZETEX 15+ TO-92
1N4744A 3710 ST 16+ DO-41
SN74HC273N 3710 TI 16+ DIP-20
FQA19N60 3711 FAIRCHILD 14+ TO-247
TDA7056B 3711 PHILIPS 14+ ZIP
XR2206 3720 EXAR 14+ DIP16
CC2530F256RHAR 3750 TI 16+ QFN40
DTDG14GP 3750 ROHM 16+ SOT89
RT9214PS 3750 RICHTEK 13+ SOP-8
SMAJ58A 3750 VISHAY 15+ SMA
NCP1653ADR2G 3754 ON 16+ SOP-8
DPA6111 3771 IR 16+ DIP4
TLP281-1 3771 TOSHIBA 14+ SOP4
B1100-13-F 3772 DIODES 14+ SMA
SN74LVC1G97DCKR 3772 TI 14+ SC70-6
FQP19N20 3777 FAIRCHILD 16+ TO220
LTC4412 3778 LINEAR 16+ SOT23-6
MAX4172EUA+T 3778 MAXIN 13+ MSOP8
TLP621-2GB 3778 TOSHIBA 15+ DIP8
MIC841LBC5 3780 MICREL 16+ SC70-5
HCF4538BEY 3785 ST 16+ DIP
MBR1645G 3788 ON 14+ TO-220
HD01 3798 DIODES 14+ SOP-4
AP70T03GH 3800 APEC 14+ TO-252





MITSUBISHI IGBT MODULES CM200DY-24H

HIGH POWER SWITCHING USE INSULATED TYPE



Description:

Mitsubishi IGBT Modules are designed for use in switching applications. Each module consists of two IGBTs in a half-bridge configuration with each transistor having a reverse-connected super-fast recovery free-wheel diode. All components and interconnects are isolated from the heat sinking baseplate, offering simplified system assembly and thermal management.



Features: CM200DY-24H Mosfet Power Module thyristor switching Lgbt Power Module

  • Low Drive Power
  • Low VCE(sat)
  • Discrete Super-Fast Recovery Free-Wheel Diode
  • High Frequency Operation
  • Isolated Baseplate for Easy Heat Sinking

Applications:

  • AC Motor Control
  • Motion/Servo Control
  • UPS
  • Welding Power Supplies

Absolute Maximum Ratings, Tj = 25 °C unless otherwise specified

Ratings Symbol CM100DY-24H Units
Junction Temperature Tj –40 to 150 °C
Storage Temperature Tstg –40 to 125 °C
Collector-Emitter Voltage (G-E SHORT) VCES 1200 Volts
Gate-Emitter Voltage (C-E SHORT) VGES ±20 Volts
Collector Current (TC = 25°C) IC 200 Amperes
Peak Collector Current ICM 400* Amperes
Emitter Current** (TC = 25°C) IE 200 Amperes
Peak Emitter Current** IEM 400* Amperes
Maximum Collector Dissipation (TC = 25°C, Tj ≤ 150°C) Pc 1500 Watts
Mounting Torque, M6 Main Terminal - 1.96 ~ 2.94 N · m
Mounting Torque, M6 Mounting - 1.96 ~ 2.94 N · m
Weight - 400 Grams
Isolation Voltage (Main Terminal to Baseplate, AC 1 min.) Viso 2500 Vrms

*Pulse width and repetition rate should be such that the device junction temperature (Tj) does not exceed Tj(max) rating.

**Represents characteristics of the anti-parallel, emitter-to-collector free-wheel diode (FWDi).



Outline Drawing and Circuit Diagram

CM200DY-24H Mosfet Power Module thyristor switching Lgbt Power Module



CM200DY-24H Mosfet Power Module thyristor switching Lgbt Power Module







Contact Details
Anterwell Technology Ltd.

Contact Person: Miss. Sharon Yang

Tel: 86-755-61352205

Fax: 86-755-61352206

Send your inquiry directly to us (0 / 3000)
