IPS521 High Side Power Mosfet Switch transistor socket 3 pin Fully Protected

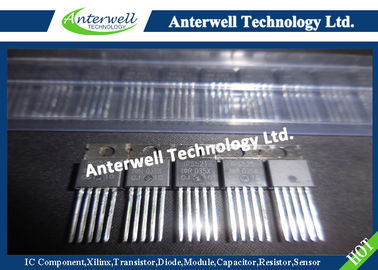

: Large Image : IPS521 High Side Power Mosfet Switch transistor socket 3 pin Fully Protected

Product Details:

Place of Origin:	Original
Brand Name:	IRF
Certification:	Original Factory Pack
Model Number:	IPS521

Payment & Shipping Terms:

Minimum Order Quantity:	20pcs
Price:	Negotiation
Packaging Details:	please contact me for details
Delivery Time:	1 Day
Payment Terms:	T/T, Western Union,PayPal
Supply Ability:	5200PCS

Contact Now

Detailed Product Description

Maximum Output Voltage:	Vcc-50 Vcc+0.3 V	Maximum Logic Ground To Load Ground Offset:	Vcc-50 Vcc+0.3 V
Maximum Input Voltage:	-0.3 /7 V	Maximum Positive IN Current:	-5/ 10 MA
Maximum Diagnostic Output Voltage:	-0.3/ 7 V
High Light:	npn smd transistor , multi emitter transistor

IPS521 High Side Power Mosfet Switch transistor socket 3 pin Fully Protected Features

• Over temperature protection (with auto-restart)

• Short-circuit protection (current limit)

• Active clamp • E.S.D protection

• Status feedback

• Open load detection

• Logic ground isolated from power ground IPS521/IPS521S Data Sheet No.PD 60158-H

Description

The IPS521/IPS521S are fully protected five terminal high side switches with built in short-circuit , overtemperature, ESD protection, inductive load capability and diagnostic feedback. The output current is controlled when it reaches Ilim value. The current limitation is activated until the thermal protection acts. The over-temperature protection turns off the high side switch if the junction temperature exceeds Tshutdown. It will automatically restart after the junction has cooled 7o C below Tshutdown. A diagnostic pin is provided for status feedback of short-circuit, over-temperature and open load detection. The double level shifter circuitry allows large offsets between the logic ground and the load ground.

Recommended Operating Conditions

These values are given for a quick design.

For operation outside these conditions, please consult the application notes

Symbol	Symbol Parameter	Min.	Max.	Units
Vcc	Continuous Vcc voltage	5.5	35	V
VIH	High level input voltage	4	5.5
VIL	Low level input voltage	-0.3	0.9
Iout	Continuous output current (Tamb = 85oC, Tj = 125oC, Rth = 60oC/W, ) IPS521	—	2.2	A
Iout	Continuous output current (Tamb = 85oC, Tj = 125oC, Rth = 80oC/W, ) IPS521S	—	1.9	A
Rin	Recommended resistor in series with IN pin	4	6	kΩ
Rdg	Recommended resistor in series with DG pin	10	20	kΩ
