Product Details:
Payment & Shipping Terms:
|
Rectangular Waveform: | 7 A | VRRM: | 60 V |
---|---|---|---|
I FSM: | 490 A | VF: | 0.61 V |
TJ Range: | - 40 To 150 °C | Package: | Lead-Free |
High Light: | diode rectifier circuit,bridge rectifier circuit |
Description/ Features

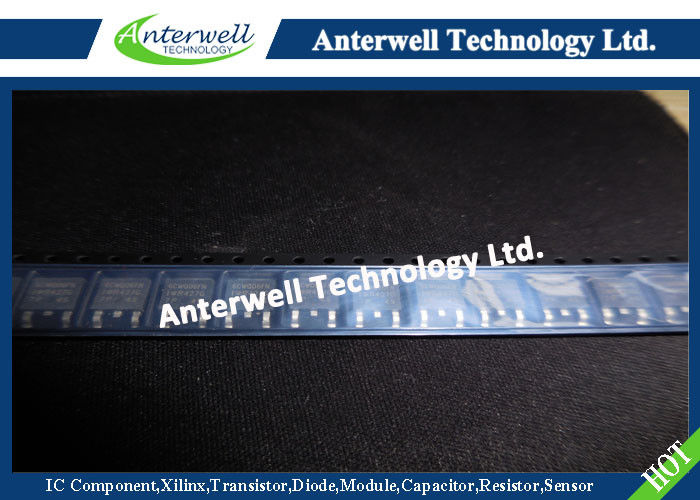

The 6CWQ06FNPbF surface mount, center tap, Schottky rectifier series has been designed for applications requiring low forward drop and small foot prints on PC board. Typical applications are in disk drives, switching power supplies, converters, free-wheeling diodes, battery charging, and reverse battery protection.
♦Popular D-PAK outline
♦ Center tap configuration
♦Small foot print, surface mountable
♦Low forward voltage drop
♦High frequency operation
♦Guard ring for enhanced ruggedness and long term reliability ♦Lead-Free ("PbF" suffix)
Voltage Ratings
Part number | 6CWQ06FNPbF |
VR Max. DC Reverse Voltage (V) | 60 |
VRWM Max. Working Peak Reverse Voltage (V) |
