ES1J Power Rectifier Diode High Efficiency For Surface Mount

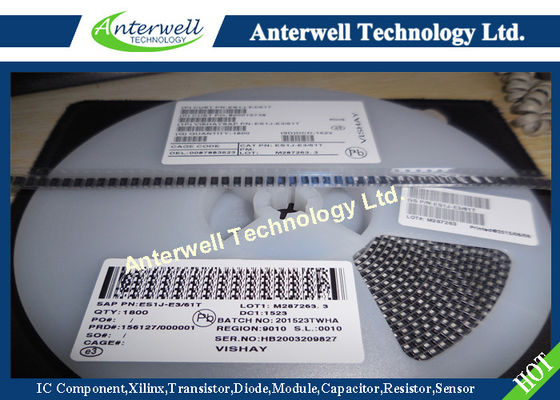

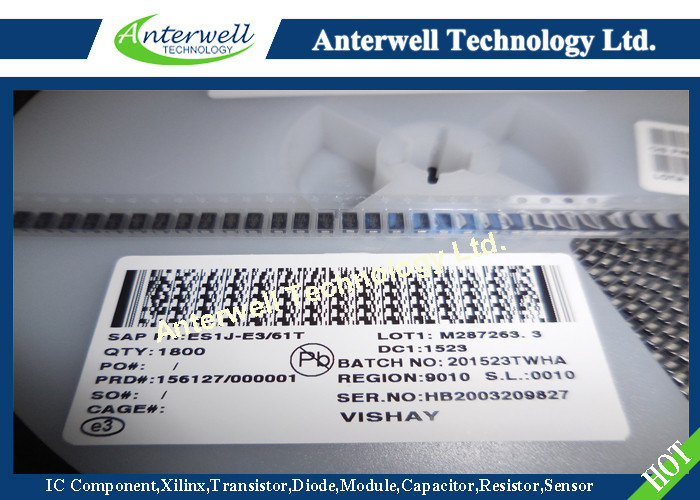

Large Image : ES1J Power Rectifier Diode High Efficiency For Surface Mount

Product Details:

Place of Origin:	Malaysia
Brand Name:	Vi shay
Certification:	Original Factory Pack
Model Number:	ES1J-E3-61T

Payment & Shipping Terms:

Minimum Order Quantity:	500pcs
Price:	Negotiation
Packaging Details:	Please ask for more details
Delivery Time:	1 Day
Payment Terms:	T/T, Western Union,PayPal
Supply Ability:	60000PCS

Contact Now

Detailed Product Description

Main Line:	Ic,module,transistor,diodes,capacitor,resistor Etc	Main Line:	Ic,module,transistor,diodes,capacitor,resistor Etc
Temperature:	-55 To +150 ℃	Temperature:	-55 To +150 ℃
Voltage:	600V	Voltage:	600V
Peak Power:	1.47 W	Peak Power:	1.47 W
Package:	SMA(DO-214AC)	Package:	SMA(DO-214AC)
Factory Package:	1800pcs/Reel	Factory Package:	1800pcs/Reel
High Light:	bridge rectifier circuit , signal schottky diode

ES1J Power Rectifier Diode High Efficiency For Surface Mount

ES1F - ES1J Fast Rectifiers

Features

ES1J Power Rectifier Diode High Efficiency For Surface Mount

• For surface mount applications.

• Glass passivated junction.

• Low profile package.

• Easy pick and place.

• Built-in strain relief.

• Superfast recovery times for high efficiency

Absolute Maximum Ratings * Ta = 25°C unless otherwise noted

Rating	Symbol	Value	Unit
Maximum Repetitive Reverse Voltage	VRRM	600	V
Peak Power Dissipation	Ppx	1.47	W
Non-repetitive Peak Forward Surge Current 8.3 ms Single Half-Sine-Wave (JEDEC method)	IFSM	30	A
Average Rectified Forward Current	IF(AV)	1.0	A
Junction Temperature	TJ	150	℃
Storage Temperature Range	Tstg	-55 to 150	℃
