Product Details:
Payment & Shipping Terms:
|
| RMS On-state Current: | 16 A | Non Repetitive Surge Peak On-state Current (full Cycle, Tj Initial = 25°C): | 168 A |
|---|---|---|---|
| Non Repetitive Surge Peak Off-state Voltage: | VDRM/VRRM + 100 V | Collector Current: | 150 MA |
| Critical Rate Of Rise Of On-state Current: | 50 A/µs | Peak Gate Current: | 4 A |
| Average Gate Power Dissipation: | 1 W | ||
| High Light: | power mosfet ic,silicon power transistors |
||

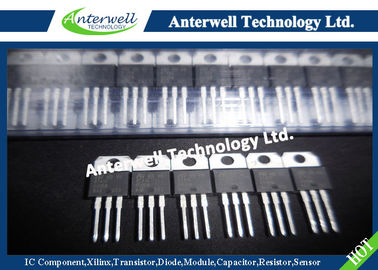

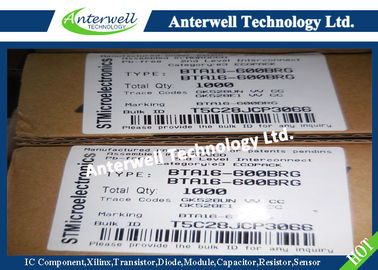

High Voltage Power Mosfet Transistor BTA16-600BRG 16A TRIACS BTA / BTB 16
DESCRIPTION
Available either in through-hole or surface-mount packages, the BTA/BTB16 and T16 triac series is suitable for general purpose AC switching. They can be used as an ON/OFF function in applications such as static relays, heating regulation, induction motor starting circuits... or for phase control operation in light dimmers, motor speed controllers, ...
The snubberless versions (BTA/BTB...W and T16 series) are specially recommended for use on inductive loads, thanks to their high commutation performances. By using an internal ceramic pad, the BTA series provides voltage insulated tab (rated at 2500V RMS) complying with UL standards (File ref.: E81734).
| Symbol | Value | Unit |
| IT(RMS) | 16 | A |
| VDRM/VRRM | 600, 700 and 800 | V |
| IGT (Q1) | 10 to 50 | mA |
ORDERING INFORMATION
Fig. 1: Maximum power dissipation versus RMS on-state current (full cycle).
Fig. 2-1: RMS on-state current versus case temperature (full cycle).
