BCP54 Power Mosfet IC Transistor NPN General Purpose Amplifier Transistors

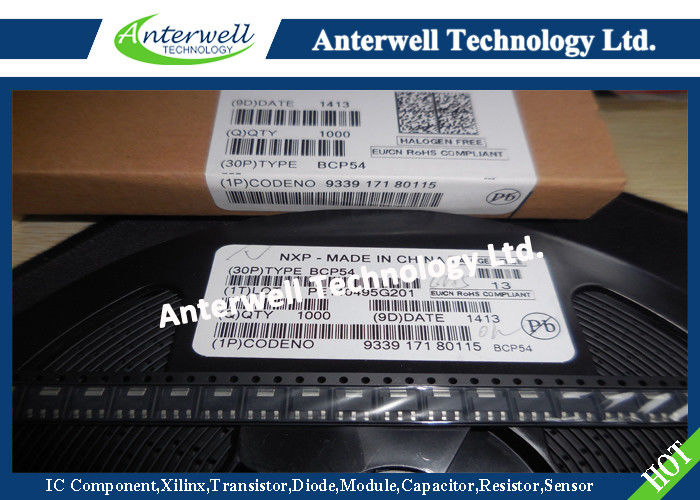

: Large Image : BCP54 Power Mosfet IC Transistor NPN General Purpose Amplifier Transistors

Product Details:

Place of Origin:	original factory
Brand Name:	Anterwell
Certification:	new & original
Model Number:	BCP54

Payment & Shipping Terms:

Minimum Order Quantity:	20pcs
Price:	Negotiate
Packaging Details:	Please contact me for details
Delivery Time:	1 day
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	10000pcs

Contact Now

Detailed Product Description

Collector-Emitter Voltage:	45 V	Collector-Base Voltage:	45 V
Emitter-Base Voltage:	5.0 V	Collector Current - Continuous:	1.5 A
Operating And Storage Junction Temperature:	-55 To +150 °C	Total Device Dissipation:	1.5 W
High Light:	multi emitter transistor , silicon power transistors

BCP54 NPN General Purpose Amplifier

BCP54 Power Mosfet IC Transistor NPN General Purpose Amplifier Transistors

This device is designed for general purpose medium power amplifiers and switching circuits requiring collector currents to 1.2 A. Sourced from Process 38.

Absolute Maximum Ratings* T_A = 25°C unless otherwise noted

Symbol	Parameter	Value	Units
V_CEO	Collector-Emitter Voltage	45	V
V_CBO	Collector-Base Voltage	45	V
V_EBO	Emitter-Base Voltage	5.0	V
I_C	Collector Current - Continuous	1.5	A
T_J, Tstg	Operating and Storage Junction Temperature Range	-55 to +150	°C

*These ratings are limiting values above which the serviceability of any semiconductor device may be impaired.

NOTES:

1) These ratings are based on a maximum junction temperature of 150 degrees C.

2) These are steady state limits. The factory should be consulted on applications involving pulsed or low duty cycle operations.
