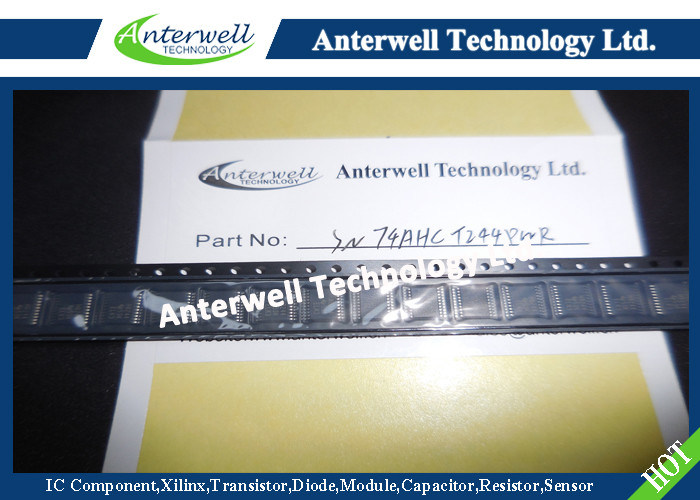

SN74AHCT244PWR Electronics Components , Program Memory LCD Controller ICs

China SN74AHCT244PWR Electronics Components , Program Memory LCD Controller ICs supplier

Large Image :  SN74AHCT244PWR Electronics Components , Program Memory LCD Controller ICs

Product Details:

Place of Origin: CHINA
Brand Name: TI
Certification: Original Factory Pack
Model Number: SN74AHCT244PWR

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: Negotiation
Packaging Details: REEL
Delivery Time: 1 Day
Payment Terms: T/T, Western Union,PayPal
Supply Ability: 39200PCS
Contact Now
Detailed Product Description
Temperature Range: –65°C To +150°C Payment Term: T/T, Paypal, Western Union
Voltage: –0.5 V To 7 V Current: 1A--30A
Package: SOP Factory Package: REEL
High Light:

chip in electronics

,

integrated components

SN54AHCT244, SN74AHCT244 OCTAL BUFFERS/DRIVERS WITH 3-STATE OUTPUTS



description/ordering information



These octal buffers/drivers are designed specifically to improve both the performance and density of 3-state memory-address drivers, clock drivers, and bus-oriented receivers and transmitters. The ’AHCT244 devices are organized as two 4-bit buffers/line drivers with separate output-enable (OE) inputs. When OE is low, the device passes data from the A inputs to the Y outputs. When OE is high, the outputs are in the high-impedance state. To ensure the high-impedance state during power up or power down, OE should be tied to VCC through a pullup resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver.



ABSOLUTE MAXIMUM RATINGS(1)

Typical Thermal Resistance, Junction to Terminal (Note 4) RθJT 30 °C/W

Operating and Storage Temperature Range TJ, TSTG -65 to +150 °C



absolute maximum ratings over operating free-air temperature range (unless otherwise noted)† Supply voltage range, VCC . . . . . . . . . . .. . . . . –0.5 V to 7 V

Input voltage range, VI (see Note 1) . . . . . . . . . . . . . . . . . . –0.5 V to 7 V

Output voltage range, VO (see Note 1) . . . . . . . . . . –0.5 V to VCC + 0.5 V

Input clamp current, IIK (VI < 0) . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . –20 mA

Output clamp current, IOK (VO < 0 or VO > VCC) . . . .. . . . . . . . . . . . . . . . . . ±20 mA

Continuous output current, IO (VO = 0 to VCC) . . . . . . .  . . . . . . . . . ±25 mA

Continuous current through VCC or GND . . . . . . . . . . . . . ±75 mA

Package thermal impedance, θJA (see Note 2): DB package 70 .  . . . . . . . °C/W

DGV package 92 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . °C/W

DW package 58 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . °C/W

N package 69 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . °C/W

NS package 60 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . °C/W

PW package 83 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . °C/W

Storage temperature range, Tstg . . . . . . . . . . . . . . . . . . . . . –65°C to 150°C



PART OF STOCK

TRANS. FDS9435A 1500 FSC 15+ SOP-8
DIODO MMBD4148,215 300000 NXP 15+ SOT23-3
C.I L7805CD2T-TR 2500 ST 14+ D2PAK
FDS6990A 1500 FSC 15+ SOP-8
NDS9952A 1500 FSC 15+ SOP-8
SN65HVD485EDR 1500 TI 16+ SOP-8
SMBJ8.5CA 7500 VISHAY 16+ SMB
PIC24FJ16GA004-I/PT 1500 MICROCHIP 13+ TQFP-44
C.I TLC072CDGNR 5000 TI 05+ MSOP-8
C.I SN74LS374N 2000 TI 15+ DIP-20
TRANS. BC817-16LT1G 300000 ON 12+ SOT-23
C.I TL074CN 1000 TI 12+ DIP-14
OPTOACOPLADOR MOC3063SM 20000 FSC 14+ SOP-6
TRIAC BT151-500R 300000 NXP 16+ TO-220
C.I MM74HC164MX 25000 FSC 05+ SOP-14
C.I WS79L05 100000 WS 16+ TO-92
RES RL1206FR-070R75L 100000 YAGEO 16+ SMD1206
RES RC1206FR-071R5L 500000 YAGEO 16+ SMD1206
RES RC1206FR-071R2L 500000 YAGEO 16+ SMD1206
RES RL1206FR-070R68L 1000000 YAGEO 16+ SMD1206
RES RC0402FR-0722KL 3000000 YAGEO 16+ SMD0402
RES RC0402FR-0756RL 2000000 YAGEO 16+ SMD0402
RES RC0402FR-0724RL 2000000 YAGEO 16+ SMD0402
RES RC1206JR-072ML 500000 YAGEO 16+ SMD1206
CAP 1206 22PF 1KV NP0 CL31C220JIFNFNE 600000 SAMSUNG 16+ SMD1206
