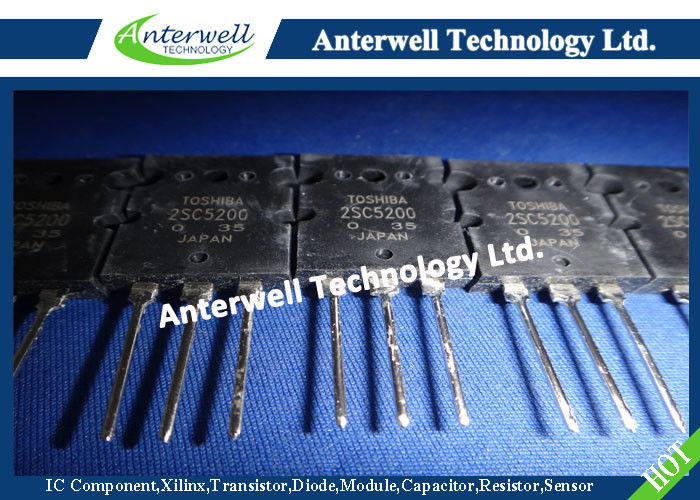

Large Image :  NPN Epitaxial Silicon Transistor Power Mosfet Transistor 2SC5200

Product Details:

Place of Origin: original factory
Brand Name: Anterwell
Certification: new & original
Model Number: 2SC5200

Payment & Shipping Terms:

Minimum Order Quantity: 20pcs
Price: Negotiate
Packaging Details: Please contact me for details
Delivery Time: 1 day
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 10000pcs
Contact Now
Detailed Product Description
Collector-Base Voltage: 230 V Collector-Emitter Voltage: 230 V
Emitter-Base Voltage: 5 V Collector Current(DC): 15 A
Base Current: 1.5 A Junction And Storage Temperature: - 50 ~ +150 °C
High Light:

npn smd transistor

,

multi emitter transistor



2SC5200/FJL4315

NPN Epitaxial Silicon Transistor



Applications

• High-Fidelity Audio Output Amplifier NPN Epitaxial Silicon Transistor Power Mosfet Transistor 2SC5200

• General Purpose Power Amplifier



Features

• High Current Capability: IC = 15A.

• High Power Dissipation : 150watts.

• High Frequency : 30MHz.

• High Voltage : VCEO=230V

• Wide S.O.A for reliable operation.

• Excellent Gain Linearity for low THD.

• Complement to 2SA1943/FJL4215.

• Thermal and electrical Spice models are available.

• Same transistor is also available in:

  -- TO3P package, 2SC5242/FJA4313 : 130 watts

  -- TO220 package, FJP5200 : 80 watts

  -- TO220F package, FJPF5200 : 50 watts



Absolute Maximum Ratings* Ta = 25°C unless otherwise noted

  Symbol             Parameter      Ratings       Units
  BVCBO   Collector-Base Voltage     230         V
  BVCEO   Collector-Emitter Voltage     230         V
  BVEBO   Emitter-Base Voltage       5         V
   IC   Collector Current(DC)      15         A
   IB   Base Current      1.5         A
   PD

  Total Device Dissipation(TC=25°C)

  Derate above 25°C

     150

     1.04

        W

      W/°C

  TJ, TSTG   Junction and Storage Temperature     - 50 ~ +150         °C

* These ratings are limiting values above which the serviceability of any semiconductor device may be impaired.



Thermal Characteristics* Ta=25°C unless otherwise noted

  Symbol             Parameter      Max      Units
   RθJC   Thermal Resistance, Junction to Case      0.83      °C/W

* Device mounted on minimum pad size



hFE Classification

   Classification            R             O
      hFE1       55 ~ 110        80 ~ 160





Typical Characteristics

NPN Epitaxial Silicon Transistor Power Mosfet Transistor 2SC5200

NPN Epitaxial Silicon Transistor Power Mosfet Transistor 2SC5200



Package Dimensions

NPN Epitaxial Silicon Transistor Power Mosfet Transistor 2SC5200
