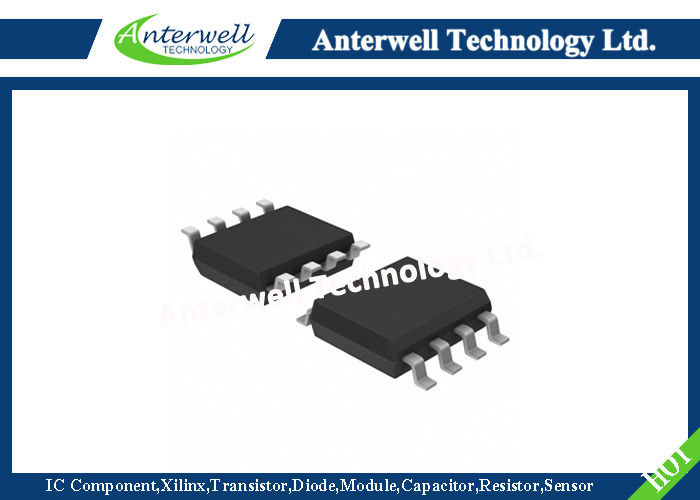

M24C08-WMN6TP 16Kbit , 8Kbit , 4Kbit , 2Kbit and 1Kbit Serial I²C Bus EEPROM

China M24C08-WMN6TP 16Kbit , 8Kbit , 4Kbit , 2Kbit and 1Kbit Serial I²C Bus EEPROM supplier

Large Image :  M24C08-WMN6TP 16Kbit , 8Kbit , 4Kbit , 2Kbit and 1Kbit Serial I²C Bus EEPROM

Product Details:

Place of Origin: original factory
Brand Name: Anterwell
Certification: new & original
Model Number: M24C08-WMN6TP

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: Negotiate
Packaging Details: Please contact me for details
Delivery Time: 1 day
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 8200pcs
Contact Now
Detailed Product Description
VDD POWER: 3.3 V, 5 V MAX Operating Temperature: + 85 C
Minimum Operating Temperature: -40C MAX Voltage: 5.5 V
Min Voltage: 2.5 V Datasheet: Pls Contact Us



M24C08-WMN6TP 16Kbit, 8Kbit, 4Kbit, 2Kbit and 1Kbit Serial I²C Bus EEPROM





FEATURES SUMMARY

Two Wire I2C Serial Interface Supports 400kHz Protocol

Single Supply Voltage: – 4.5 to 5.5V for M24Cxx – 2.5 to 5.5V for M24Cxx-W – 1.8 to 5.5V for M24Cxx-R Write Control Input

BYTE and PAGE WRITE (up to 16 Bytes)

 RANDOM and SEQUENTIAL READ Modes

Self-Timed Programming Cycle

Automatic Address Incrementing

Enhanced ESD/Latch-Up Behavior

More than 1 Million Erase/Write Cycles

More than 40 Year Data Retention





SUMMARY DESCRIPTION



These I2C-compatible electrically erasable programmable memory (EEPROM) devices are organized as 2048/1024/512/256/128 x 8 (M24C16, M24C08, M24C04, M24C02, M24C01).





M24C08-WMN6TP 16Kbit , 8Kbit , 4Kbit , 2Kbit and 1Kbit Serial I²C Bus EEPROM



2C uses a two wire serial interface, comprising a bi-directional data line and a clock line. The devices carry a built-in 4-bit Device Type Identifier code (1010) in accordance with the I2C bus definition. The device behaves as a slave in the I2C protocol, with all memory operations synchronized by the serial clock. Read and Write operations are initiated by a Start condition, generated by the bus master. The Start condition is followed by a Device Select Code and RW bit (as described in Table 2.), terminated by an acknowledge bit.







When writing data to the memory, the device inserts an acknowledge bit during the 9th bit time, following the bus master’s 8-bit transmission. When data is read by the bus master, the bus master acknowledges the receipt of the data byte in the same way. Data transfers are terminated by a Stop condition after an Ack for Write, and after a NoAck for Read.



M24C08-WMN6TP 16Kbit , 8Kbit , 4Kbit , 2Kbit and 1Kbit Serial I²C Bus EEPROM





Power On Reset: VCC Lock-Out Write Protect



In order to prevent data corruption and inadvertent Write operations during Power-up, a Power On Reset (POR) circuit is included. At Power-up, the internal reset is held active until VCC has reached the POR threshold value, and all operations are disabled – the device will not respond to any command. In the same way, when VCC drops from the operating voltage, below the POR threshold value, all operations are disabled and the device will not respond to any command. A stable and valid VCC (as defined in Table 6. and Table 7.) must be applied before applying any logic signal.



M24C08-WMN6TP 16Kbit , 8Kbit , 4Kbit , 2Kbit and 1Kbit Serial I²C Bus EEPROM







SIGNAL DESCRIPTION



Serial Clock (SCL). This input signal is used to strobe all data in and out of the device. In applications where this signal is used by slave devices to synchronize the bus to a slower clock, the bus master must have an open drain output, and a pull-up resistor can be connected from Serial Clock (SCL) to VCC. (Figure 4. indicates how the value of the pull-up resistor can be calculated). In most applications, though, this method of synchronization is not employed, and so the pull-up resistor is not necessary, provided that the bus master has a push-pull (rather than open drain) output.



Serial Data (SDA). This bi-directional signal is used to transfer data in or out of the device. It is an open drain output that may be wire-OR’ed with other open drain or open collector signals on the bus. A pull up resistor must be connected from Serial Data (SDA) to VCC. (Figure 4. indicates how the value of the pull-up resistor can be calculated).



Chip Enable (E0, E1, E2). These input signals are used to set the value that is to be looked for on the three least significant bits (b3, b2, b1) of the 7- bit Device Select Code. These inputs must be tied to VCC or VSS, to establish the Device Select Code.





Write Control (WC). This input signal is useful for protecting the entire contents of the memory from inadvertent write operations. Write operations are disabled to the entire memory array when Write Control (WC) is driven High. When unconnected, the signal is internally read as VIL, and Write operations are allowed. When Write Control (WC) is driven High, Device Select and Address bytes are acknowledged, Data bytes are not acknowledged.





M24C08-WMN6TP 16Kbit , 8Kbit , 4Kbit , 2Kbit and 1Kbit Serial I²C Bus EEPROM
