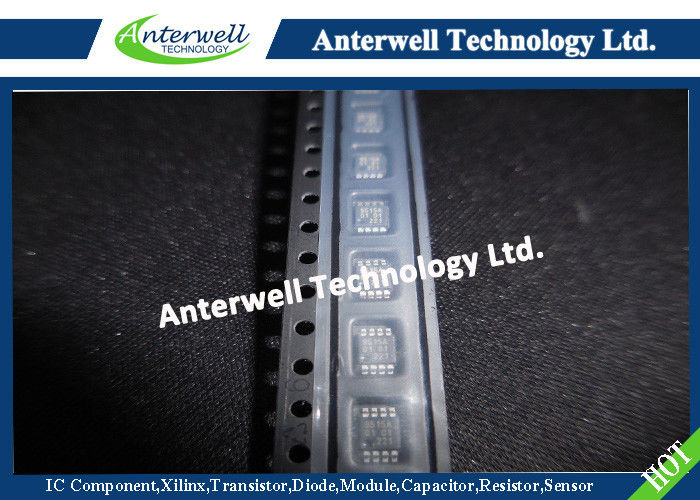

PCA9515ADGKR
DUAL BIDIRECTIONAL I2C BUS AND SMBus REPEATER
FEATURES
• Two-Channel Bidirectional Buffers
• I 2C Bus and SMBus Compatible
• Active-High Repeater-Enable Input
• Open-Drain I 2C I/O
• 5.5-V Tolerant I 2C I/O and Enable Input
Support Mixed-Mode Signal Operation
• Lockup-Free Operation
• Accommodates Standard Mode and Fast
Mode I 2C Devices and Multiple Masters
• Supports Arbitration and Clock Stretching
Across the Repeater
• Powered-Off High-Impedance I 2C Pins
• Latch-Up Performance Exceeds 100 mA Per
JESD 78, Class II
• ESD Protection Exceeds JESD 22
– 2000-V Human-Body Model (A114-A)
– 200-V Machine Model (A115-A)
– 1000-V Charged-Device Model (C101)
Absolute Maximum Ratings
| MIN | MAX | UNIT | |
| VCC Supply voltage range | –0.5 | 7 | V |
| VI Enable input voltage range(2) | –0.5 | 7 | V |
| VI/O I2C bus voltage range(2) | –0.5 | 7 | V |
| IK Input clamp current | –50 | mA | |
| IOK Output clamp current | –50 | mA | |
| IO Continuous output current | ±50 | mA | |
| Continuous current through VCC or GND | ±100 | mA | |
| Tstg Storage temperature range | –65 | 150 | °C |
(1) Stresses beyond those listed under Absolute Maximum Ratings may cause
permanent damage to the device. These are stress ratings only, and functional
operation of the device at these or any other conditions beyond those indicated
under Recommended Operating Conditions is not implied. Exposure to absolute
-maximum-rated conditions for extended periods may affect device reliability.
(2) The input negative-voltage and output voltage ratings may be exceeded if
the input and output current ratings are observed.
(3) The package thermal impedance is calculated in accordance with JESD 51-7.
Recommended Operating Conditions
| MIN | MAX | UNIT | ||
| VCC Supply voltage | 2.3 | 3.6 | V | |
| VIH High-level input voltage | SDA and SCL inputs | 0.7 × VCC | 5.5 | V |
| EN input | 2 | 5.5 | ||
| VIL (1) Low-level input voltage | SDA and SCL inputs | –0.5 | 0.3 × VCC | V |
| EN input | –0.5 | 0.8 | ||
| VILc (1) SDA and SCL low-level input voltage contention | –0.5 | 0.4 | V | |
| IOL Low-level output current | VCC = 2.3 V | 6 | mA | |
| VCC = 3 V | 6 | |||
| TA Operating free-air temperature | –40 | 85 | °C | |
(1) VIL specification is for the EN input and the first low level seen by the SDAx and SCLx lines.
VILc is for the second and subsequent low levels seen by the SDAx and SCLx lines. VILc
must be at least 70 mV below VOL
