TQP7M9105 Integrated Circuit Chip 1W High Linearity Amplifier integrated circuit ic

China TQP7M9105 Integrated Circuit Chip 1W High Linearity Amplifier integrated circuit ic supplier

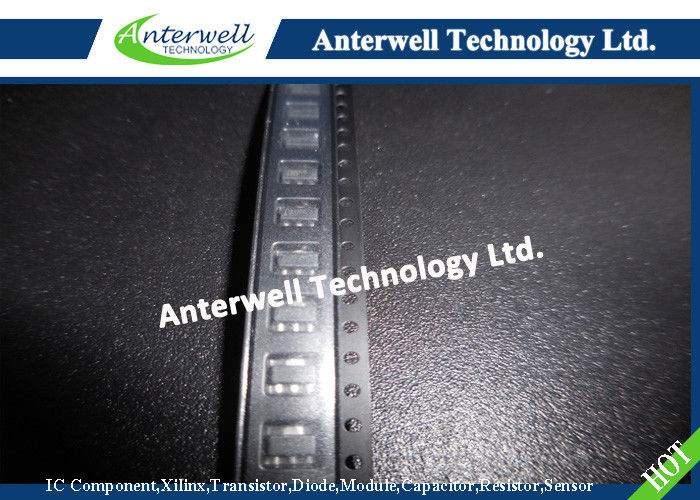

Large Image :  TQP7M9105 Integrated Circuit Chip 1W High Linearity Amplifier integrated circuit ic

Product Details:

Place of Origin: original factory
Brand Name: Anterwell
Certification: new & original
Model Number: TQP7M9105

Payment & Shipping Terms:

Minimum Order Quantity: 10PCS
Price: Negotiate
Packaging Details: Please contact me for details
Payment Terms: T/T, Western Union, MoneyGram Paypal
Supply Ability: 3000pcs/week
Contact Now
Detailed Product Description
Working Frequency: 50 MHz To 1.5 GHz VDD POWER: 5V
Packaging: SOT-89-3 Max Working Temperture: + 85 °C
Supply Current: 220 MA Factory Packing Quantity: 1000
High Light:

electronics ic chip

,

integrated circuit components





TQP7M9105 1W High Linearity Amplifier



Applications

Repeaters

BTS Transceivers

BTS High Power Amplifiers

CDMA / WCDMA / LTE

 ISM Equipment

General Purpose Wireless



Product Features

50-1500 MHz

 +30 dBm P1dB at 940MHz

 +47 dBm Output IP3 at 940MHz

19.5 dB Gain at 940 MHz

+5V Single Supply, 220 mA Current

Internal RF overdrive protection

Internal DC overvoltage protection

On chip ESD protection

SOT-89 Package



General Description



The TQP7M9105 is a high linearity, high gain 1W driver amplifier in industry standard, RoHS compliant, SOT-89 surface mount package. This InGaP/GaAs HBT delivers high performance across 0.05 to 1.5 GHz while achieving +47 dBm OIP3 and +30 dBm P1dB at 940 MHz while only consuming 220 mA quiescent current. All devices are 100% RF and DC tested.



The TQP7M9105 incorporates on-chip features that differentiate it from other products in the market. The amplifier has a dynamic active bias circuit that enable stable operation over bias and temperature variations and can provide a high linearity at back-off operation.



The TQP7M9105 is targeted for use as a driver amplifier in wireless infrastructure where high linearity, medium power, and high efficiency are required. The device an excellent candidate for transceiver line cards and high power amplifiers in current and next generation multi-carrier 3G / 4G base stations.



TQP7M9105 Integrated Circuit Chip 1W High Linearity Amplifier integrated circuit icTQP7M9105 Integrated Circuit Chip 1W High Linearity Amplifier integrated circuit ic



Absolute Maximum Ratings

Parameter Rating
StorageTemperature 65 to 150°C
Device Voltage, Vcc +8 V
RF Input Power CW 50Ω, T=25°C +30 dBm



Operation of this device outside the parameter ranges given above may cause permanent damage.



Recommended Operating Conditions

Parameter Min Typ Max Units
Operating Temp. Range -40   +85 °C
Vcc   +5 +5.25 V
Tj (for>106 hours MTTF)     +170 °C



Electrical specifications are measured at specified test conditions. Specifications are not guaranteed over all recommended operating conditions.







Specifications

Test conditions unless otherwise noted: +25°C, +5V Vcc, 50 Ω system, tuned application circuit

Parameter Conditions Min Typ MAX Units
Operational Frequency Range   50   1500 MHz
Test Frequency     940   MHz
Gain   17.5 19.4 20.5 dB
Input Return Loss     14   dB
Output Return Loss     15   dB
Output P1dB   +28.7 +30   dBm
Output IP3 Pout=+15 dBm/tone, Δf=1 MHz +43.5 +47   dBm
WCDMA Channel Power (1) At -50 dBc ACLR   +20.5   dBm
Noise Figure     6.3   dB
Vcc     +5   V
Quiescent Current, Icq   195 220 245 mA
Thermal Resistance (junction to base)     27.3   °C/W

Notes: 1. ACLR Test set-up: 3GPP WCDMA, TM1+64 DPCH, +5 MHz offset, PAR = 9.7 dB at 0.01% Prob.
