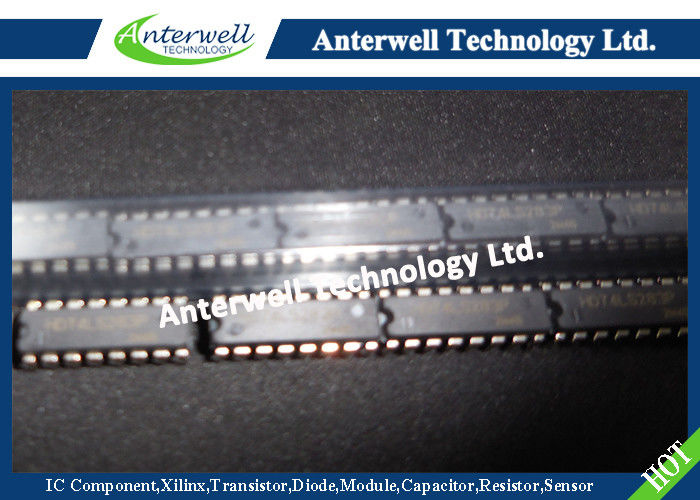

HD74LS283P Integrated Circuit Chip 4 bit Binary Full Adder laptop

: Large Image : HD74LS283P Integrated Circuit Chip 4 bit Binary Full Adder laptop

Product Details:

Place of Origin:	original factory
Brand Name:	Anterwell
Certification:	new & original
Model Number:	HD74LS283P

Payment & Shipping Terms:

Minimum Order Quantity:	20pcs
Price:	Negotiate
Packaging Details:	Please contact me for details
Delivery Time:	1 day
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	9000pcs

Contact Now

Detailed Product Description

Supply Voltage:	7 V	Input Voltage:	7 V
Power Dissipation:	400 MW	Storage Temperature:	–65 To +150 °C
Operating Temperature:	–20 To 75 °C	Package:	Tube
High Light:	electronics ic chip , integrated circuit ic

HD74LS283 4-bit Binary Full Adder

The HD74LS283 adder is electrically and functionally identical to the HD74LS83A, respectively; only the arrangement of the terminals has been changed.

This improved full adder performs the addition of two 4-bit binary words.

The sum (Σ) outputs are provided for each bit and the resultant carry (C4) is obtained from the fourth bits generating the carry term in then nanoseconds.

The adder logic, including the carry, is implemented in its true form.

End around carry can be accomplished without the need for logic or level inversion.

Pin Arrangement

HD74LS283P Integrated Circuit Chip 4 bit Binary Full Adder laptop

Block Diagram

HD74LS283P Integrated Circuit Chip 4 bit Binary Full Adder laptop

Absolute Maximum Ratings

Item	Symbol	Ratings	Unit
Supply voltage	V_CC	7	V
Input voltage	V_IN	7	V
Power dissipation	P_T	400	mW
Storage temperature	Tstg	–65 to +150	°C

Note: Voltage value, unless otherwise noted, are with respect to network ground terminal.
