Product Details:
Payment & Shipping Terms:
|
| Bias Ambient Temperature: | −55 To +125 °C | Storage Temperature: | −65 To +150 °C |
|---|---|---|---|
| Input Voltage: | −0.5 To +14 V | Voltage On Any Other Pin: | −0.5 To VDD + 0.5 V |
| Total Power Dissipation: | 1.5 W | Package: | 44-LCC |
| High Light: | electronics ic chip,integrated circuit components |
||

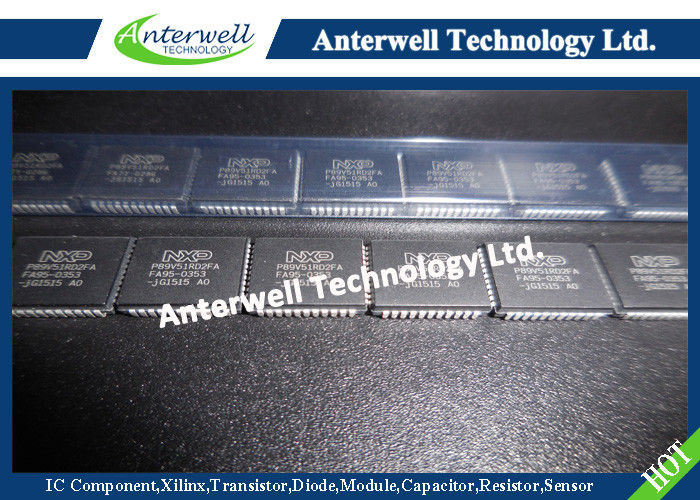

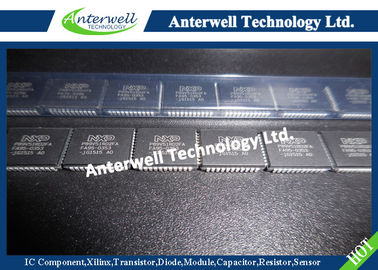

P89V51RB2/RC2/RD2
8-bit 80C51 5 V low power 16/32/64 kB flash microcontroller with 1 kB RAM
General description
The P89V51RB2/RC2/RD2 are 80C51 microcontrollers with 16/32/64 kB flash and 1024 B of data RAM.
A key feature of the P89V51RB2/RC2/RD2 is its X2 mode option. The design engineer can choose to run the application with the conventional 80C51 clock rate (12 clocks per machine cycle) or select the X2 mode (six clocks per machine cycle) to achieve twice the throughput at the same clock frequency. Another way to benefit from this feature is to keep the same performance by reducing the clock frequency by half, thus dramatically reducing the EMI.
The flash program memory supports both parallel programming and in serial ISP. Parallel programming mode offers gang-programming at high speed, reducing programming costs and time to market. ISP allows a device to be reprogrammed in the end product under software control. The capability to field/update the application firmware makes a wide range of applications possible.
The P89V51RB2/RC2/RD2 is also capable of IAP, allowing the flash program memory to be reconfigured even while the application is running.
Features
■ 80C51 CPU
■ 5 V operating voltage from 0 MHz to 40 MHz
■ 16/32/64 kB of on-chip flash user code memory with ISP and IAP
■ Supports 12-clock (default) or 6-clock mode selection via software or ISP
■ SPI and enhanced UART
■ PCA with PWM and capture/compare functions
■ Four 8-bit I/O ports with three high-current port 1 pins (16 mA each)
■ Three 16-bit timers/counters
■ Programmable watchdog timer
■ Eight interrupt sources with four priority levels
■ Second DPTR register
■ Low EMI mode (ALE inhibit)
■ TTL- and CMOS-compatible logic levels
■ Brownout detection
■ Low power modes
◆ Power-down mode with external interrupt wake-up
◆ Idle mode
■ DIP40, PLCC44 and TQFP44 packages
Block diagram
Limiting values
In accordance with the Absolute Maximum Rating System (IEC 60134).
Parameters are valid over operating temperature range unless otherwise specified. All voltages are with respect to VSS unless otherwise noted.
| Symbol | Parameter | Conditions | Min | Max | Unit |
|---|---|---|---|---|---|
| Tamb(bias) | bias ambient temperature | −55 | +125 | °C | |
| Tstg | storage temperature | −65 | +150 | °C | |
| VI | input voltage | on EA pin to VSS | −0.5 | +14 | V |
| Vn | voltage on any other pin | except VSS; with respect to VDD | −0.5 | VDD + 0.5 | V |
| IOL(I/O) | LOW-level output current per input/output pin | pins P1.5, P1.6, P1.7 | - | 20 | mA |
| all other pins | - | 15 | mA | ||
| Ptot(pack) | total power dissipation (per package) | based on package heat transfer, not device power consumption | - | 1.5 | W |
