Product Details:
Payment & Shipping Terms:
|
| Peak Repetitive Reverse Voltage: | 600 V | Working Peak Reverse Voltage: | 600 V |
|---|---|---|---|
| DC Blocking Voltage: | 600 V | Non-Repetitive Peak Surge Current: | 30 A |
| Operating Junction Temperature: | −65 To +175 °C | Package: | SMA |
| High Light: | diode rectifier circuit,signal schottky diode |
||

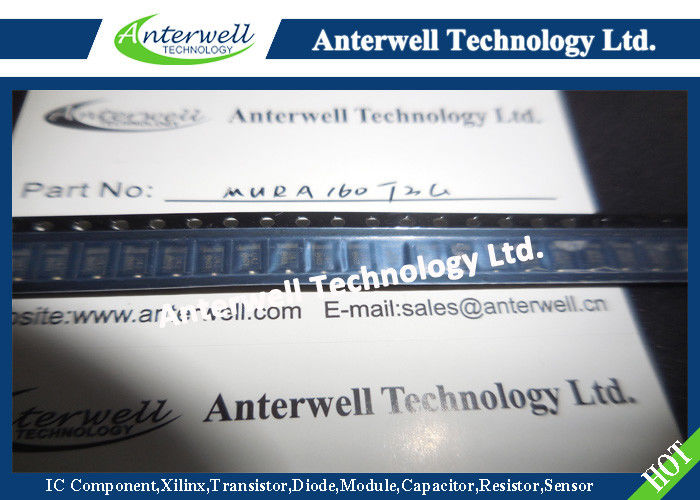

MURA160T3
Surface Mount Ultrafast Power Rectifier
ULTRAFAST RECTIFIER
1 AMPERE, 600 VOLTS
Ideally suited for high voltage, high frequency rectification, or as free wheeling and protection diodes in surface mount applications where compact size and weight are critical to the system.
Features
• Small Compact Surface Mountable Package with J−Bend Leads
• Rectangular Package for Automated Handling
• High Temperature Glass Passivated Junction
• Low Forward Voltage Drop (1.05 V Max @ 1.0 A, TJ = 150°C)
• Pb−Free Package is Available
Mechanical Characteristics:
• Case: Epoxy, Molded
• Weight: 70 mg (Approximately)
• Finish: All External Surfaces Corrosion Resistant and Terminal Leads are Readily Solderable
• Lead and Mounting Surface Temperature for Soldering Purposes: 260°C Max. for 10 Seconds
• Polarity: Polarity Band Indicates Cathode Lead
• ESD Protection: Human Body Model > 4000 V (Class 3)
Machine Model > 400 V (Class C)
MAXIMUM RATINGS
| Rating | Symbol | Value | Unit |
|---|---|---|---|
|
Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage |
VRRM VRWM VR |
600 | V |
|
Average Rectified Forward Current @ TL = 145°C @ TL = 110°C |
IF(AV) |
1.0 2.0 |
A |
|
Non-Repetitive Peak Surge Current (Surge Applied at Rated Load Conditions Halfwave, Single Phase, 60 Hz) |
IFSM | 30 | A |
| Operating Junction Temperature Range | TJ | −65 to +175 | °C |
