BD439 Power Mosfet module Plastic Medium Power Silicon NPN Transistor

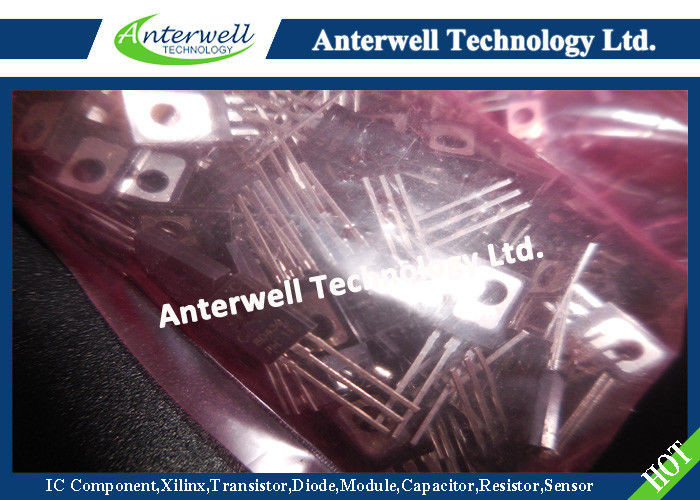

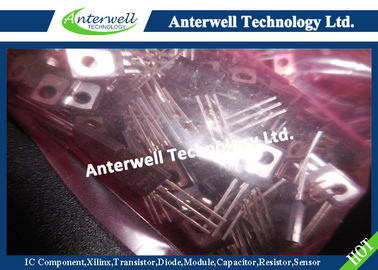

Large Image : BD439 Power Mosfet module Plastic Medium Power Silicon NPN Transistor

Product Details:

Place of Origin:	original factory
Brand Name:	Anterwell
Certification:	new & original
Model Number:	BD439

Payment & Shipping Terms:

Minimum Order Quantity:	20pcs
Price:	Negotiate
Packaging Details:	Please contact me for details
Delivery Time:	1 day
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	10000pcs

Contact Now

Detailed Product Description

Collector-base Voltage:	60 V	Collector-emitter Voltage:	60 V
Emitter -base Voltage:	5 V	Collector Current (DC):	4 A
Collector Current-Peak:	7 A	Base Current:	1 A
High Light:	power mosfet ic , multi emitter transistor

Silicon NPN Power Transistors

BD439 BD441

DESCRIPTION

• With TO-126 package

• Complement to type BD440,BD442

APPLICATIONS

·For medium power linear and switching applications

PINNING

PIN	DESCRIPTION
1	Emitter
2	Collector;connected to mounting base
3	Base

BD439 Power Mosfet module Plastic Medium Power Silicon NPN Transistor

Absolute maximum ratings (Ta=25℃)

SYMBOL	PARAMETER		CONDITIONS	VALUE	UNIT
V_CBO	Collector-base voltage	BD439	Open emitter	60	V
V_CBO	Collector-base voltage	BD441	Open emitter	80	V
V_CEO	Collector-emitter voltage	BD439	Open base	60	V
V_CEO	Collector-emitter voltage	BD441	Open base	80	V
V_EBO	Emitter -base voltage		Open collector	5	V
I_C	Collector current (DC)			4	A
I_CM	Collector current-Peak			7	A
I_B	Base current			1	A
P_C	Collector power dissipation		T_C=25℃	36	W
Tj	Junction temperature			150	℃
Tstg	Storage temperature			-65~150	℃

PACKAGE OUTLINE

BD439 Power Mosfet module Plastic Medium Power Silicon NPN Transistor
