1SR154-400TE25 Standard Recovery Rectifiers General Purpose Diodes

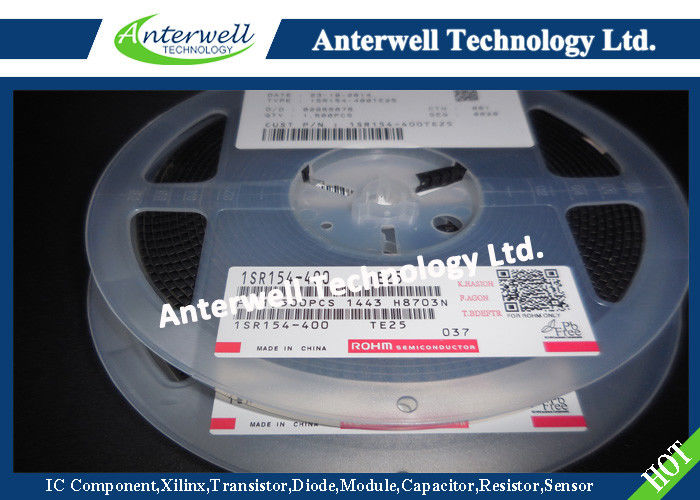

: Large Image : 1SR154-400TE25 Standard Recovery Rectifiers General Purpose Diodes

Product Details:

Place of Origin:	original factory
Brand Name:	Anterwell
Certification:	new & original
Model Number:	1SR154-400TE25

Payment & Shipping Terms:

Minimum Order Quantity:	200pcs
Price:	Negotiate
Packaging Details:	Please contact me for details
Delivery Time:	1 day
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	50000pcs

Contact Now

Detailed Product Description

Reverse Voltage (non-repetitive Peak):	500 V	Reverse Voltage (repetitive Peak):	400 V
Average Rectified Forward Current:	1 A	Forward Current Surge Peak （60Hz/1cyc）:	30 A
Junction Temperature:	150℃	Storage Temperature:	-55 To +150℃
High Light:	bridge rectifier circuit , signal schottky diode

Rectifier diode 1SR154-400

Applications

General rectification

Features

1)Small power mold type(PMDS)

2)High Reliability

Construction

Silicon diffused junction

Absolute maximum ratings (Ta=25℃)

Parameter	Symbol	Limits	Unit
Reverse voltage (non-repetitive peak)	V_RMS	500	V
Reverse voltage (repetitive peak)	V_R	400	V
Average rectified forward current	Io	1	A
Forward current surge peak (60Hz/1cyc)	I_FSM	30	A
Junction temperature	Tj	150	℃
Storage temperature	Tstg	-55 to +150	℃
