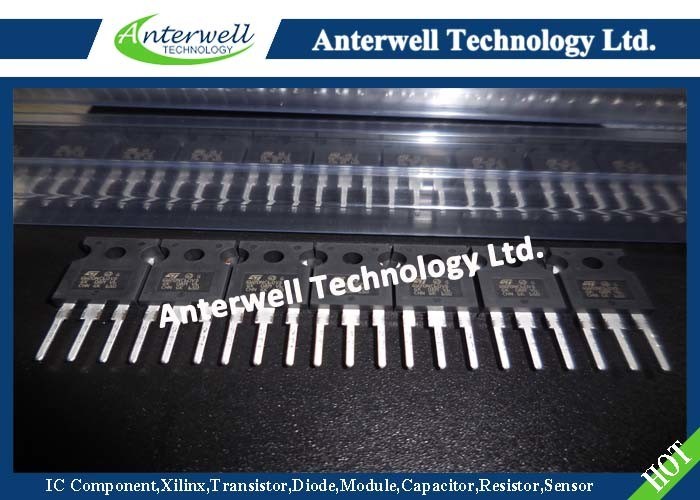

STGW20NC60VD power mosfet module N-CHANNEL Very Fast PowerMESH IGBT

Good quality Programmable IC Chips for sales
Good quality Programmable IC Chips for sales
We have cooperate with Anterwell near 7 years. always very good quality good service. Original and very fast delivery. A very good partner.

—— Clemente From Brzail

I'm doing business with Anterwell from 2006, from small to big orders. Reliable!

—— Ingalill From Sweden

Sharon is a very good girl, we are very happy to cooperate with her. Competitive price and professional. Never have quality problem with them.

—— Alfredo From USA

We always buy XILINX parts from Anterwell. High quality with good price. Hope can have more business with you.

—— Mr Babak From Iran

I'm Online Chat Now

STGW20NC60VD power mosfet module N-CHANNEL Very Fast PowerMESH IGBT

China STGW20NC60VD power mosfet module N-CHANNEL Very Fast PowerMESH IGBT supplier

Large Image :  STGW20NC60VD power mosfet module N-CHANNEL Very Fast PowerMESH IGBT

Product Details:

Place of Origin: original factory
Brand Name: Anterwell
Certification: new & original
Model Number: STGW20NC60VD

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: Negotiate
Packaging Details: Please contact me for details
Delivery Time: 1 day
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 10000pcs
Contact Now
Detailed Product Description
Collector-Emitter Voltage: 600 V Reverse Battery Protection: 20 V
Gate-Emitter Voltage: ± 20 V Collector Current (pulsed): 100 A
Derating Factor: 1.6 W/°C Storage Temperature: -55 To 150 °C
High Light:

multi emitter transistor

,

silicon power transistors



STGW20NC60VD

N-CHANNEL 30A - 600V TO-247 Very Fast PowerMESH™ IGBT



General Features

TYPE VCES VCE(sat) (Max) @25°C IC @100°C
STGW20NC60VD 600 V < 2.5 V 30 A



■ OFF LOSSES INCLUDE TAIL CURRENT

■ LOSSES INCLUDE DIODE RECOVERY ENERGY

■ HIGH CURRENT CAPABILITY

■ HIGH FREQUENCY OPERATION UP TO 50 KHz

■ VERY SOFT ULTRA FAST RECOVERY ANTIPARALLEL DIODE

■ LOWER CRES /CIES RATIO

■ NEW GENERATION PRODUCTS WITH TIGHTER PARAMETER DISTRIBUTION



DESCRIPTION

Using the latest high voltage technology based on a patented strip layout, STMicroelectronics has designed an advanced family of IGBTs, the PowerMESH™ IGBTs, with outstanding performances. The suffix “V” identifies a family optimized for high frequency applications.



APPLICATIONS

■ HIGH FREQUENCY INVERTERS

■ SMPS and PFC IN BOTH HARD SWITCH AND RESONANT TOPOLOGIES

■ UPS

■ MOTOR DRIVERS



STGW20NC60VD power mosfet module N-CHANNEL Very Fast PowerMESH IGBT   STGW20NC60VD power mosfet module N-CHANNEL Very Fast PowerMESH IGBT



Absolute Maximum ratings

Symbol Parameter Value Symbol
VCES Collector-Emitter Voltage (VGS = 0) 600 V
VECR Reverse Battery Protection 20 V
VGE Gate-Emitter Voltage ± 20 V
IC Collector Current (continuous) at 25°C (#) 60 A
IC Collector Current (continuous) at 100°C (#) 30 A
ICM (1) Collector Current (pulsed) 100 A
If Diode RMS Forward Current at TC = 25°C 30 A
PTOT Total Dissipation at TC = 25°C 200 W
  Derating Factor 1.6 W/°C
Tstg Storage Temperature – 55 to 150 °C
Tj Operating Junction Temperature – 55 to 150 °C

(1)Pulse width limited by max. junction temperature.
